TE Connectivity AMP Connectors 3-641237-7

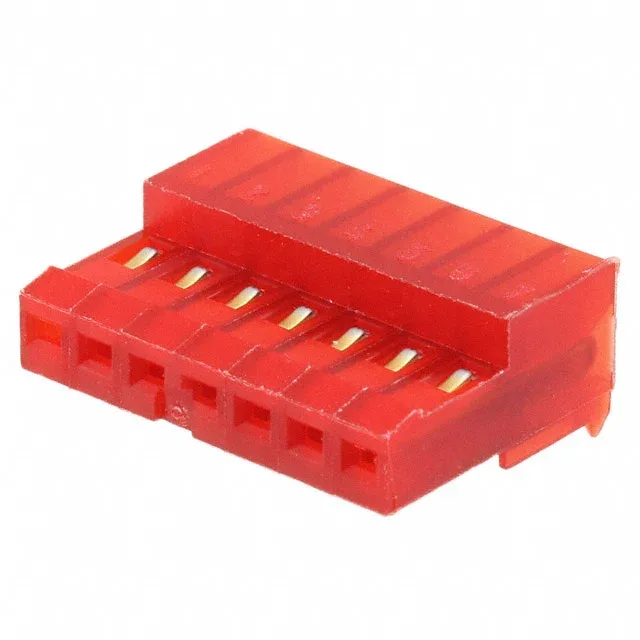

TE MTA-100 3-641237-7, 7 Pos IDC Receptacle, 0.100" Pitch

MPN 3-641237-7
Active

TE Connectivity MTA-100 3-641237-7, 7-position IDC receptacle, 0.100" (2.54mm) pitch, 1 row, female socket, gold 30.0µin (0.76µm) contact finish, free-hanging right-angle mount, locking ramp, closed end, 22 AWG discrete or ribbon cable.

$4.0600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-641237-7 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions7
Contact finish thickness30.0µin (0.76µm)

Product details

7-Position IDC Receptacle on 0.100" Pitch

The 3-641237-7: It terminates 22 AWG discrete or ribbon cable directly through insulation displacement — no individual wire stripping or crimping needed. The closed-end housing prevents wire insertion from the wrong side, a common assembly error on open-ended IDC connectors. The red color aids visual identification on the line.

30 µ" Gold Contacts for Field-Service Duty

In a harness that sees field replacement or periodic reconnection, this plating grade resists fretting corrosion better than a thin gold flash or tin finish. The gold is applied over the full contact surface, not just the mating tip.

IDC Termination — Wire Gauge Is Fixed

This connector terminates 22 AWG wire only. The IDC slot geometry is sized for that conductor diameter; using a different gauge risks an unreliable gas-tight joint or a slot that does not cut the insulation cleanly. Accepts both discrete wires and ribbon cable, so it fits either a point-to-point harness or a multi-conductor ribbon assembly.

Mounting: Free-Hanging, Right-Angle Cable Exit

The receptacle mounts free-hanging (in-line) with a right-angle cable exit.

MPN
3-641237-7
