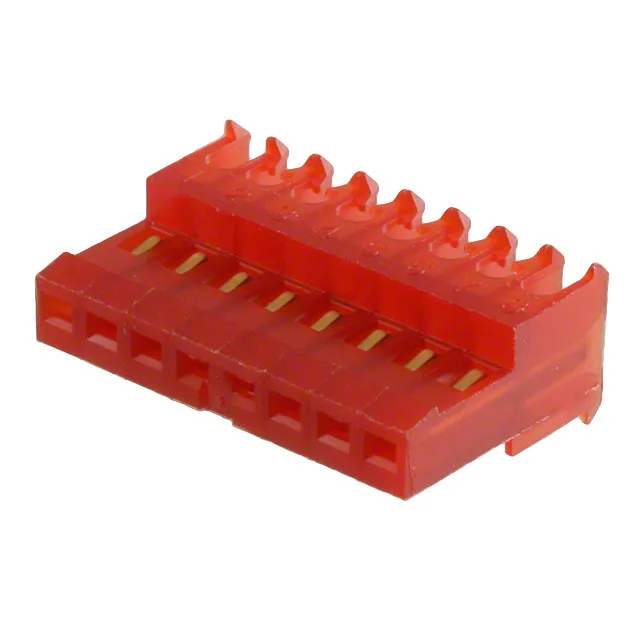

3-641241-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 3-641241-8 MTA-100 Receptacle, 8 Pos

MPN3-641241-8
Active

TE Connectivity MTA-100 IDC receptacle, 8 positions, 0.100" (2.54mm) pitch, 1 row, female socket, gold 30.0µin contact finish, locking ramp, free-hanging right-angle, 22 AWG, red, bulk.

$2.9700Ref. price · indicative, final on quote
3-641241-8 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-641241-8 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishGold
Rows1
Positions8
Contact finish thickness30.0µin (0.76µm)

Product details

8-Position IDC Receptacle for Harness Assembly

The TE Connectivity 3-641241-8 is an 8-position MTA-100 IDC receptacle designed for mass-termination of discrete or ribbon cable. The 0.100" (2.54mm) pitch matches standard ribbon cable spacing, and the locking ramp provides positive retention against vibration in the mated pair. Gold plating at 30.0µin (0.76µm) on the female socket contacts supports repeated mating cycles without degradation — a practical choice for harnesses that see field service or periodic reconnection.

Wiring and Termination Fit

This receptacle terminates 22 AWG wire via IDC — the insulation is displaced on insertion, so no stripping or crimping is needed. The feed-through feature allows daisy-chaining multiple connectors along the same wire run, useful for distributing a signal or power rail across several points in a harness.

Frequently asked questions

What is the pitch of the 3-641241-8?

The pitch is 0.100" (2.54mm), which is the standard spacing for MTA-100 IDC connectors and matches common ribbon cable pitch.

Where can I buy 3-641241-8?

This part is sourced to order; availability and pricing are confirmed at quote time.
