The 3-641435-4: It mates with the matching MTA-156 header (0.156" pitch) to form a wire-to-board interconnect. The closed-end housing prevents wire push-out and provides a positive stop for the cable jacket during assembly. The orange color is a visual aid for line identification — the MTA-156 series uses distinct colors for different position counts.

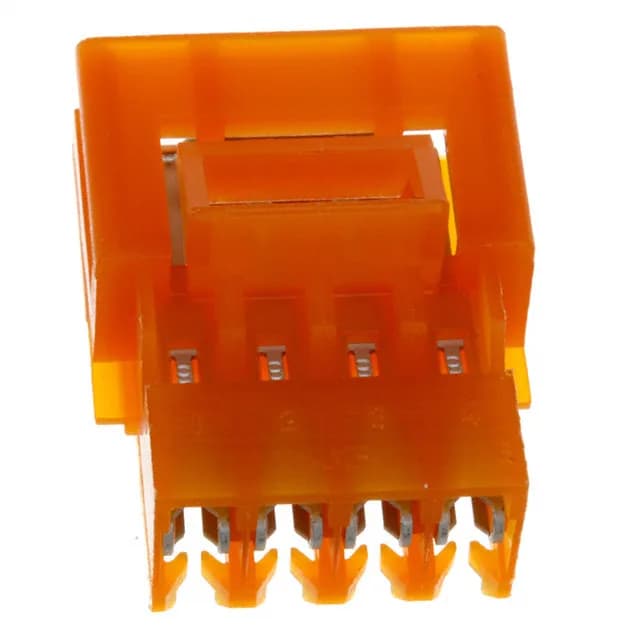

TE Connectivity 3-641435-4 MTA-156 Plug, 4 Pos, IDC, 18 AWG
MPN3-641435-4
Active
TE Connectivity MTA-156 series, 3-641435-4, 4-position IDC plug, 0.156" (3.96mm) pitch, 1 row, tin 80.0µin (2.03µm) contacts, free-hanging right-angle, 18 AWG, closed end, orange, bulk.
$1.1500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Wire type | Discrete or Ribbon Cable |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug |
| Wire gauge | 18 AWG |
| Cable termination | IDC |
| Color | Orange |
| Pitch | 0.156\" (3.96mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 4 |
| Contact finish thickness | 80.0µin (2.03µm) |
Product details
Frequently asked questions
Does 3-641435-4 have a closed end?
Yes, the 3-641435-4 features a closed end, which acts as a back wall in the housing to prevent wire push-out and provide a positive stop for the cable jacket during IDC termination.
What wire gauge does 3-641435-4 support?
The 3-641435-4 is designed for 18 AWG wire only. The IDC slot is sized for that gauge, so no other wire size can be terminated in this plug.
Where can I buy 3-641435-4?
Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
