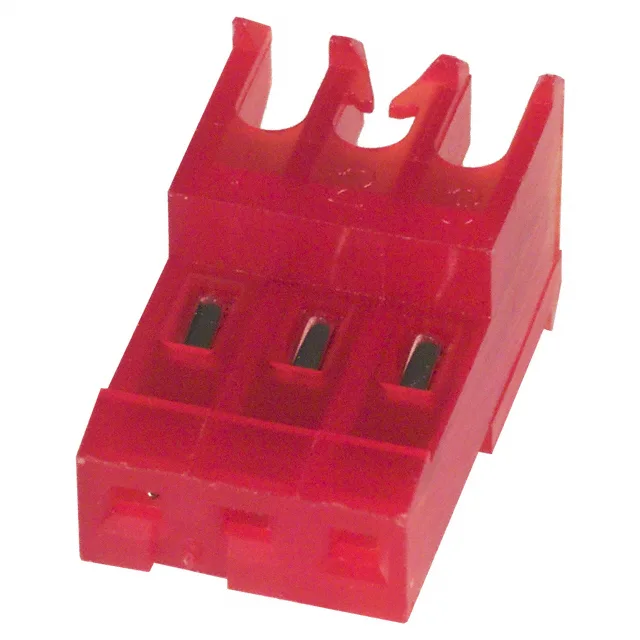

3-641653-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-641653-3, 3 Pos IDC Receptacle, 0.100" Pitch

MPN3-641653-3
Active

TE Connectivity MTA-100 receptacle, 3-641653-3, 3 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 22 AWG, tin contacts, free-hanging right-angle, locking ramp, red.

$0.3700Ref. price · indicative, final on quote
3-641653-3 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-641653-3 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions3
Contact finish thickness80.0µin (2.03µm)

Product details

Pitch and the Ribbon — Why 0.100" Matters

The TE Connectivity MTA-100 3-641653-3 is a 3-position IDC receptacle built for mass-termination onto discrete or ribbon cable. The single-row, 3-position layout keeps the assembly narrow, and the red housing gives a quick visual check that pin-one is oriented right before the press comes down.

IDC Termination — One Press, No Stripping

Cable termination is IDC — insulation displacement. You run the 22 AWG wire (discrete or ribbon) into the slot and press. The contact tines slice through the insulation and grip the conductor. No stripping, no crimping, no loose terminals to feed.

Contact Plating — Heavy Tin for the Duty

If your design calls for frequent reconnection or a corrosive environment, you would step up to gold-plated MTA-100 variants. For a one-time harness assembly that mates once and stays, this tin thickness is more than adequate.

Frequently asked questions

Does 3-641653-3 work with MTA-100 headers?

Yes, the 3-641653-3 is a receptacle in the MTA-100 series and mates with MTA-100 headers of the same pitch and position count. The locking ramp provides positive retention.

Is 3-641653-3 RoHS compliant?

Yes, the 3-641653-3 is RoHS compliant.
