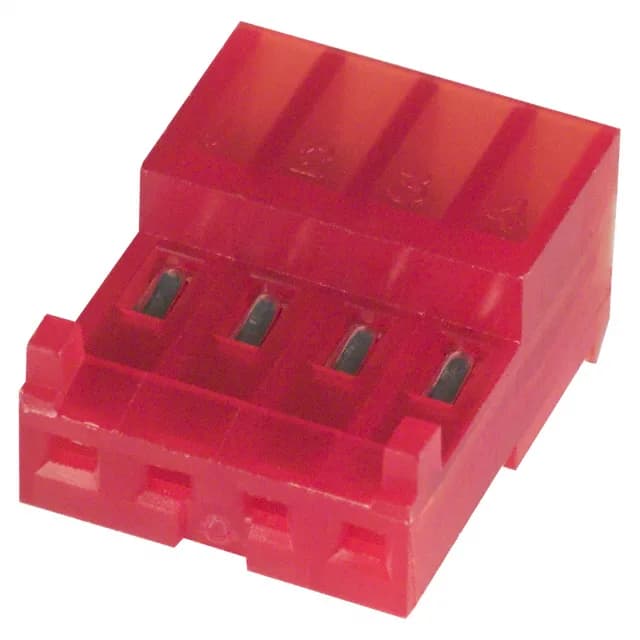

TE MTA-100 3-643813-4 Receptacle, 4 Pos, 0.100" Pitch

MPN3-643813-4
Active

TE Connectivity MTA-100 IDC receptacle, 3-643813-4, 4 positions, 0.100" (2.54 mm) pitch, 1 row, tin contacts 80.0 µin, 22 AWG, locking ramp, closed end, free hanging right angle.

$0.3700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-643813-4 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions4
Contact finish thickness80.0µin (2.03µm)

Product details

The 3-643813-4: The closed-end design means it terminates the end of a wire run; there's no pass-through for daisy-chaining, which simplifies harness routing when you want a clean stop at the last device.

Locking Ramp and IDC Termination — What That Means in the Field

No secondary lock, no screw, just an audible snap when it's home. The IDC termination punches through the 22 AWG insulation and grips the conductor in one stroke; the tin plating at 80.0 µin (2.03 µm) is thick enough to survive the IDC slot's cold-flow without cracking, but it's tin, not gold, so mating cycle life is in the tens, not hundreds. For a harness that gets assembled once and stays put — inside a control cabinet, on a conveyor, behind a panel — that's fine. If you're mating and unmating every shift, you'd want a gold-plated sibling in the MTA-100 line.

Frequently asked questions

What wire gauge does 3-643813-4 support?

It is rated for 22 AWG discrete or ribbon cable, terminated via IDC — no stripping or crimping required.
