TE Connectivity AMP Connectors 3-643813-5 — Panel-Mount & In-Line Circular

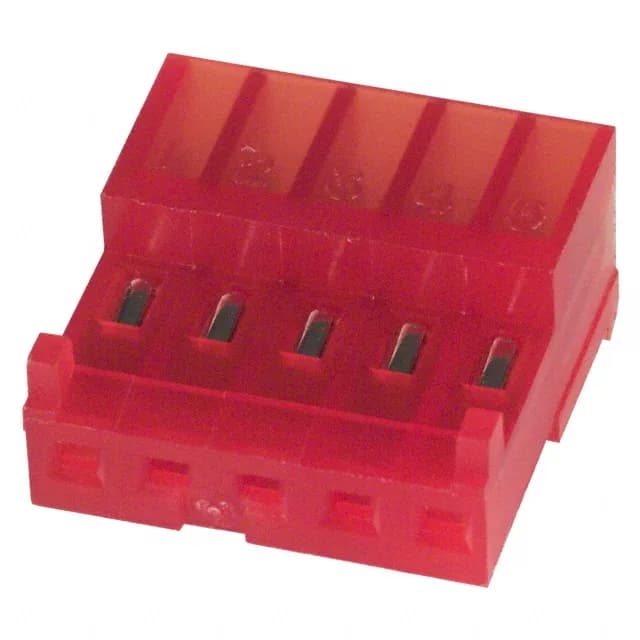

TE MTA-100 3-643813-5, 5-Pos IDC Receptacle, 0.100" Pitch

MPN3-643813-5
Active

TE Connectivity MTA-100 receptacle, 3-643813-5, 5 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin 80.0µin, free-hanging right-angle, locking ramp, red, bulk.

$0.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-643813-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-643813-5 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions5
Contact finish thickness80.0µin (2.03µm)

Product details

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, so the board layout is set by that spacing.

Termination and Wire Fit — What the IDC and 22 AWG Rating Mean

IDC termination presses the cable into the slot; the insulation is displaced by the contact tines. The 22 AWG wire gauge is the only supported size.

Mounting and Orientation — Free-Hanging Right-Angle

The closed-end feature means the housing is solid at the back — no daisy-chain pass-through, so this is the end of the wire run.

Frequently asked questions

What is the mating header for 3-643813-5?

This receptacle mates with a 0.100" pitch MTA-100 header. The locking ramp on the receptacle engages the ramp on the mating header for positive retention.
