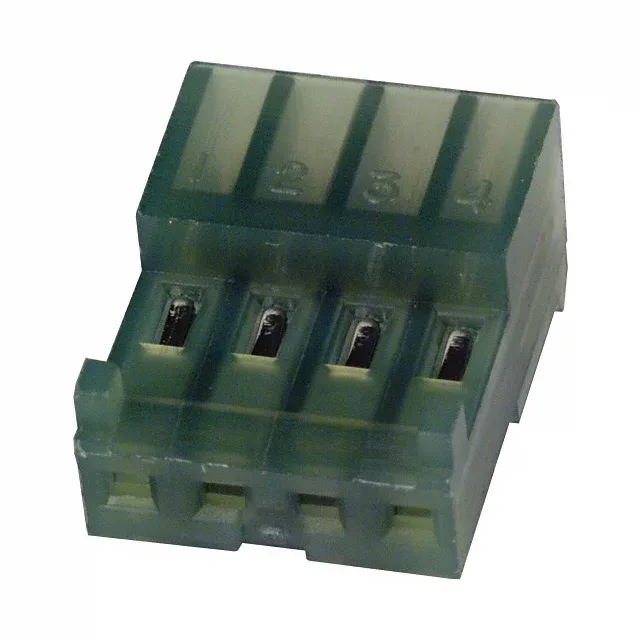

3-643816-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-643816-4, 4-Pos IDC Receptacle, 0.100" Pitch

MPN3-643816-4
Active

TE Connectivity MTA-100 receptacle, 3-643816-4, 4 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin-plated female socket, free-hanging right-angle mount, locking ramp, closed end, green, bulk.

$0.3700Ref. price · indicative, final on quote
3-643816-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-643816-4 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge28 AWG
Cable terminationIDC
ColorGreen
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions4
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-100 IDC Receptacle, 4 Positions, 0.100" Pitch

The 3-643816-4: The green housing includes a closed end that acts as a cable stop, and the locking ramp provides positive retention against the header latch — no secondary hardware needed for vibration-prone harness runs.

Locking Ramp and Closed-End IDC Termination

The closed end stops the cable at a fixed insertion depth, so each conductor lands at the same position relative to the insulation-piercing contact — consistent electrical performance across all four circuits.

Tin Plating and Wire Gauge Fit

It is rated for the full current capacity of the 28 AWG wire the connector is designed for. Tin-to-tin contact with a header of the same finish is reliable for the service life of the harness; if the application requires frequent reconnection or operates in a corrosive atmosphere, a gold-plated MTA-100 variant would be the better choice.

Frequently asked questions

Where can I buy 3-643816-4 and what is the lead time?

Submit an RFQ for a firm commitment on your quantity.

Is 3-643816-4 compatible with MTA-100 headers?

Yes. The locking ramp engages the header latch for positive retention.

Does 3-643816-4 have a locking ramp?

Yes. The fastening type is a locking ramp. It snaps over the ramp on the mating header and holds the connector pair engaged without additional hardware.

Is 3-643816-4 RoHS compliant?

Yes. The 3-643816-4 is ROHS3 compliant.
