TE Connectivity AMP Connectors 3-644540-8 — Panel-Mount & In-Line Circular

TE MTA-100 3-644540-8, 8-Pos IDC Receptacle, 0.100" Pitch

MPN3-644540-8
Active

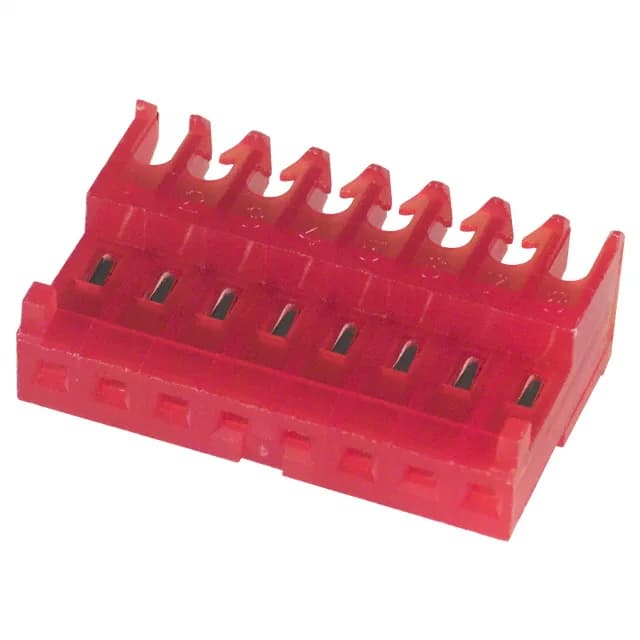

TE Connectivity MTA-100 receptacle, 3-644540-8, 8 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin-plated contacts, locking ramp, free-hanging or right-angle mount.

$0.6700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-644540-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-644540-8 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions8
Contact finish thickness80.0µin (2.03µm)

Product details

The TE Connectivity 3-644540-8 is an 8-position MTA-100 IDC receptacle designed for mass-termination of discrete or ribbon cable to a board header.

IDC Termination and Wire Gauge

The feed-through feature lets you daisy-chain multiple receptacles on the same continuous wire run, which is useful for distributing power or signals to several points on a cable without splicing.

Tin-plated contacts at 80.0µin (2.03µm) thickness give adequate corrosion resistance for indoor equipment; the thick tin layer also withstands the wiping action during multiple insertion cycles better than a thin flash.

Frequently asked questions

Where can I buy 3-644540-8 and get a price?

Submit a request for your target quantity and we will confirm availability and current pricing at quote time.

What is the pitch of 3-644540-8?

The pitch is 0.100" (2.54mm), which is the standard MTA-100 spacing and matches the mating header's pin row.

Is 3-644540-8 RoHS compliant?

Yes, it is ROHS3 compliant.

What wire gauge is used with 3-644540-8?

It is designed for 22 AWG discrete or ribbon cable, terminated via IDC.

What is the mating header for 3-644540-8?

It mates with a standard MTA-100 male header (0.100" pitch, square pins). The locking ramp on the receptacle engages the ramp slot on the header for positive retention.

Can 3-644540-8 be daisy-chained?

Yes, the feed-through feature allows multiple receptacles to be terminated on the same continuous wire run without cutting the cable.
