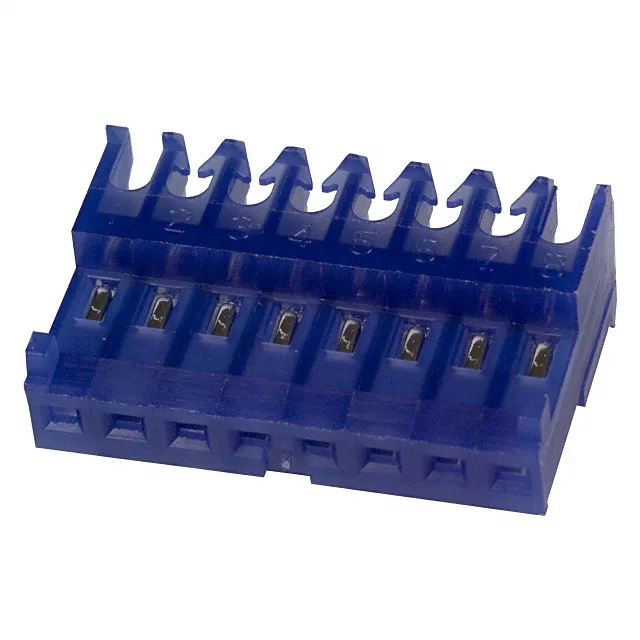

3-644564-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-644564-8, 8-Pos IDC Receptacle, 0.100" Pitch

MPN3-644564-8
Active

TE Connectivity MTA-100 receptacle, 3-644564-8, 8 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin-plated female socket, free-hanging right-angle, locking ramp.

$0.4800Ref. price · indicative, final on quote
3-644564-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-644564-8 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions8
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-100 IDC Receptacle for 26 AWG Harnessing

Tin Plating and Termination

The feed-through feature lets you pass the same cable through multiple receptacles, which simplifies daisy-chain wiring in a harness.

Mounting and Cable Routing

This is a free-hanging (in-line) right-angle receptacle. The right-angle cable exit keeps the wire bundle flush against the board or panel, which helps in tight enclosures where a straight exit would hit the cover. The single-row, 8-position layout accepts 26 AWG wire — either discrete strands or ribbon cable — and requires an IDC hand tool or press to terminate.

Frequently asked questions

What is the closest pin-compatible alternative to 3-644564-8 in the MTA-100 family?

Within the MTA-100 series, the 3-644564-8 is an 8-position receptacle. A gold-plated variant would offer higher mating cycle life but the footprint and cable termination are identical.
