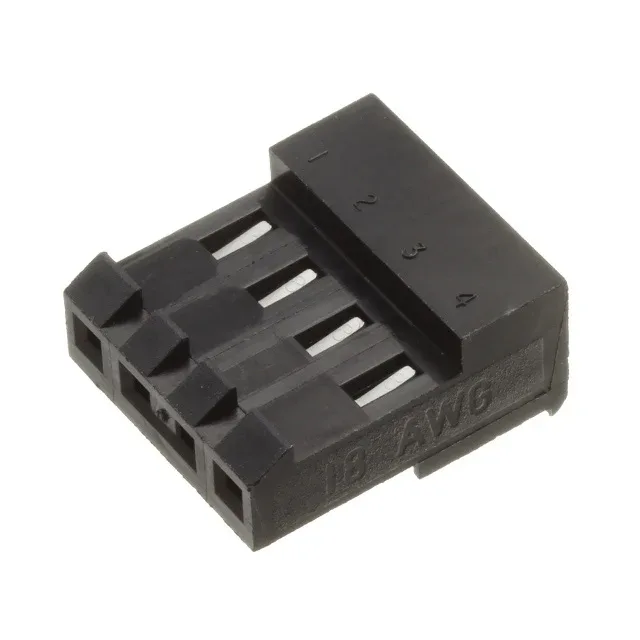

3-644860-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-644860-4, 4-Pos IDC Receptacle, 0.156" Pitch

MPN3-644860-4
Active

TE Connectivity MTA-156 receptacle, 3-644860-4, 4 positions, 0.156" (3.96mm) pitch, 1 row, IDC termination, 18 AWG, tin contacts, locking ramp, free-hanging, black housing.

$0.6100Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-644860-4 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge18 AWG
Cable terminationIDC
ColorBlack
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions4
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-156 IDC Receptacle, 4 Positions, 0.156" Pitch

The 3-644860-4: The 0.156" (3.96mm) pitch gives enough spacing for 18 AWG wire without crowding the IDC slot, making it a standard choice for internal power and signal harnesses in appliances, HVAC controls, and vending equipment.

IDC termination accepts 18 AWG discrete wire or ribbon cable — the contact pierces the insulation and makes gas-tight connection without stripping or crimping. This speeds harness assembly in medium-to-high volume production. The closed-end housing prevents wire strands from exiting the back of the connector, which is useful when the harness routes into a confined space.

The latch is audible and tactile on full engagement, giving field confidence that the pair is locked. For free-hanging applications, the ramp resists un-mating from cable tug or vibration better than a friction-only detent.

Frequently asked questions

Is the 3-644860-4 RoHS compliant?

Yes, the 3-644860-4 is RoHS compliant.

What is the pitch of the 3-644860-4?

The pitch is 0.156" (3.96mm), standard for the MTA-156 series.

What wire gauge does the 3-644860-4 accept?

It accepts 18 AWG discrete or ribbon cable for IDC termination.
