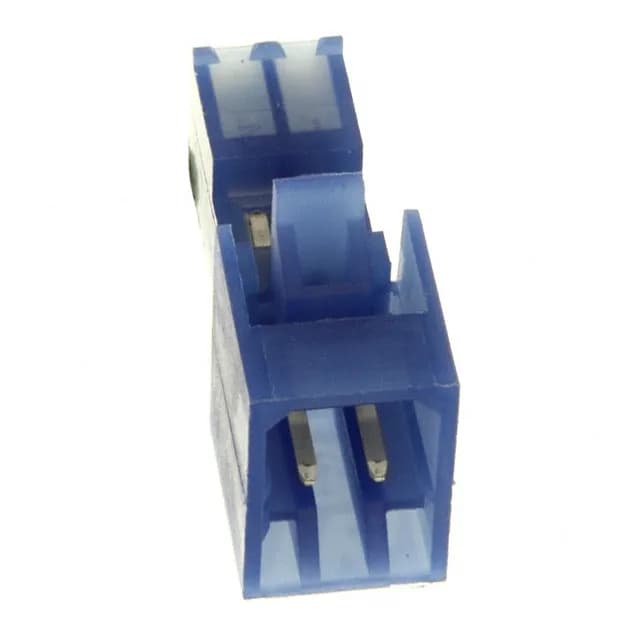

TE Connectivity MTA-100 IDC plug, 2 positions, 0.100" (2.54 mm) pitch, tin-plated contacts, closed end, free-hanging right-angle mount.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 2 |
| Contact finish thickness | 80.0µin (2.03µm) |
The latch holder locks onto the mating header for vibration-resistant retention in moderate-duty harnesses.
This thickness resists galling during the IDC insertion process and maintains a reliable gas-tight connection with the wire strands. For low-voltage signal or power taps where mating cycles are moderate, this tin finish is a cost-effective choice over gold.
Yes, the 3-647002-2 is RoHS compliant per TE's listing.
Yes, the housing has a closed end, which prevents wire over-insertion and provides a clean cable exit.
Any MTA-100 header with 2 positions and 0.100" pitch will mate with this plug, using the latch holder for retention.
