TE Connectivity AMP Connectors 3-647002-4 — Panel-Mount & In-Line Circular

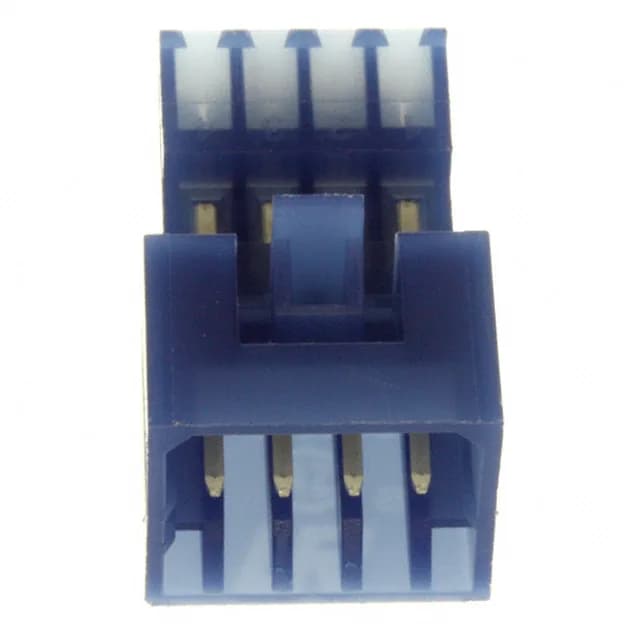

TE 3-647002-4 MTA-100 Plug, 4 Pos IDC 26 AWG Tin

MPN3-647002-4
Active

TE Connectivity MTA-100 plug, 3-647002-4, 4 positions, 0.100" (2.54mm) pitch, IDC termination, 26 AWG, tin plating, closed end, blue housing.

$0.7900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-647002-4 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeMale Pin
MountingFree Hanging (In-Line), Right Angle
Connector typePlug
Fastening typeLatch Holder
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions4
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-100 IDC Plug for Discrete or Ribbon Cable Harnesses

The 3-647002-4: The closed-end housing provides polarization, preventing reverse insertion into a header.

IDC Termination and Wire Handling

IDC termination eliminates wire stripping and crimping — the 26 AWG conductor is pressed into the slot, piercing the insulation. The plug accepts discrete wires or ribbon cable, giving the harness builder flexibility to use either. The latch holder fastening type secures the plug to the mating header, with an audible click confirming full engagement.

Frequently asked questions

What is the pitch of the 3-647002-4 MTA-100 connector?

The pitch is 0.100" (2.54mm), standard for the MTA-100 series.

What wire gauge does the 3-647002-4 support?

It is designed for 26 AWG discrete or ribbon cable, terminated via IDC.

Is the 3-647002-4 a male or female connector?

It is a plug with male pin contacts, intended to mate with a receptacle housing.

Is 3-647002-4 suitable for ribbon cable?

Yes, the plug accepts either discrete or ribbon cable, per the manufacturer's specification.

Where can I buy 3-647002-4 available via RFQ confirmation?

Availability and pricing confirmed at quote time.
