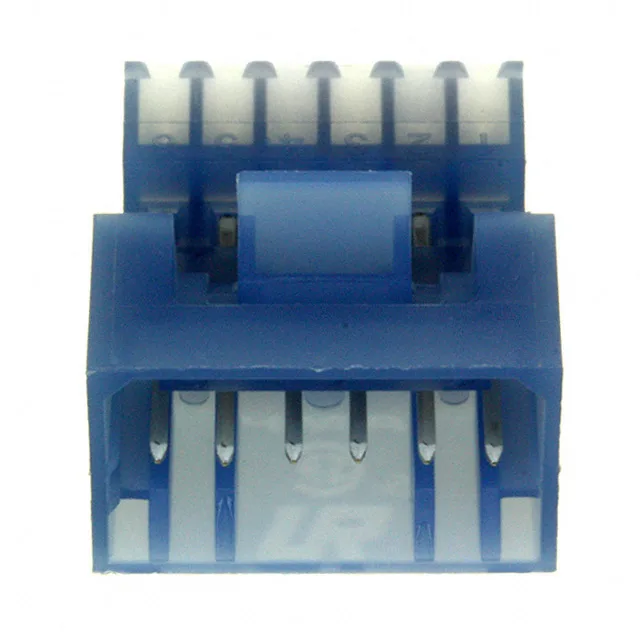

Termination and Wire Gauge — Fixed at 26 AWG
This plug is designed specifically for 26 AWG wire — not a range. The IDC slot geometry and insulation displacement blades are sized for that gauge, so using a different wire size risks an unreliable connection or damaged contacts. The cable can be discrete wires or ribbon cable, terminated in a single press operation.
Mounting and Orientation — Free-Hanging, Right-Angle Cable Exit
The latch holder locks onto the mating header's ramp, providing audible and tactile feedback during engagement.
