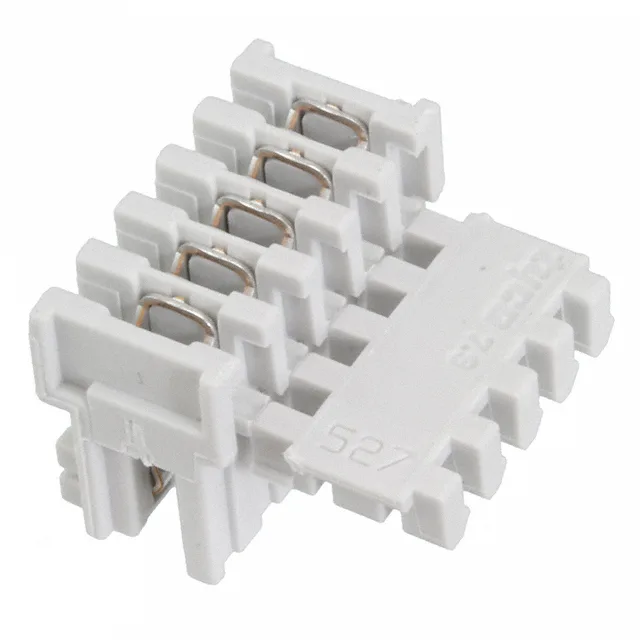

3-829868-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE DuoPlug 3-829868-5, 5-Pos IDC Receptacle, 2.50mm Pitch

MPN3-829868-5
Active

TE Connectivity DuoPlug IDC receptacle, 3-829868-5, 5 positions, 1 row, 0.098" (2.50mm) pitch, tin female socket contacts, free-hanging inline mount, 22 AWG discrete wire, gray housing.

$0.5300Ref. price · indicative, final on quote
3-829868-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-829868-5 Technical Specifications
ParameterValue
SeriesDuoPlug
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22 AWG
Cable terminationIDC
ColorGray
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesMates to PCB
Contact finishTin
Rows1
Positions5

Product details

The gray housing is free-hanging (inline), so this receptacle sits in the harness and mates to a PCB-mounted header.

IDC Termination — Line-Feed Fit for Harness Builds

For a harness builder, that translates to one less process step and consistent termination depth across the 5 positions. The single-row layout keeps the cable exit inline with the mating header, which simplifies routing in tight enclosures. The 'Mates to PCB' feature confirms this receptacle is intended to plug into a board-mounted pin header — not a panel-mount or another inline connector. That makes the board-side header the critical mating half to source alongside this part.

The 5-position count at 0.098" (2.50mm) pitch is the primary footprint constraint. A 6-position header will not fit this receptacle, and a 4-position header leaves one contact unconnected. The single-row layout means the mating header must also be single-row, 5 positions, with 2.50mm pitch.

Frequently asked questions

What is the mating connector for 3-829868-5?

The 3-829868-5 is a receptacle that mates to a PCB-mounted pin header — the 'Mates to PCB' feature confirms the interconnect path. The mating header must be a 5-position, single-row, 0.098" (2.50mm) pitch pin header from the DuoPlug series or a compatible 2.50mm pitch header.

Does 3-829868-5 have RoHS compliance?

Yes, the 3-829868-5 is ROHS3 Compliant, meeting the EU RoHS directive for restricted substances.
