Housing for male FFC contacts
The 3-88189-0 is a 10-position FFC pin housing from TE Connectivity AMP Connectors, accepting 22-24 AWG discrete wire or 0.015mm-thick FFC with an insulation diameter of 0.061" ~ 0.069" (1.55mm ~ 1.75mm).

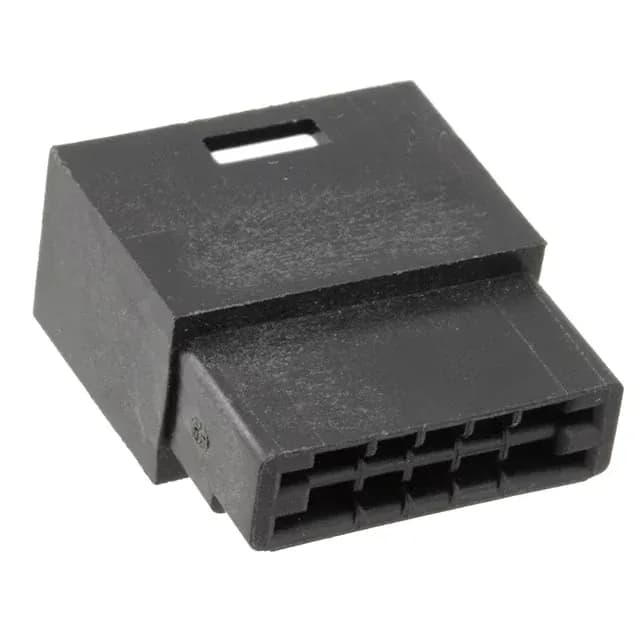

3-88189-0 TE Connectivity FFC Pin Housing 10 Pos 2.54mm
MPN3-88189-0
Active
TE Connectivity AMP Connectors FFC pin housing, order code 3-88189-0, 10 positions, dual row, 0.100" (2.54mm) pitch, 1.5 A, 300 V, housing for male contacts, detent lock, black polyamide glass-filled UL94 V-0, bulk.
$8.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-24 AWG |
| Operating temperature | -65°C~105°C |
| Housing color | Black |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Positions Stamped |
| Rows | 2 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.015mm |
| Insulation diameter | 0.061\" ~ 0.069\" (1.55mm ~ 1.75mm) |
| Positions | 10 |
Product details
Frequently asked questions
What is 3-88189-0's listed pitch (0.100" (2.54mm)) on this FFC / FPC Housings line?
The pitch is 0.100" (2.54mm) for the 10-position dual-row housing.
