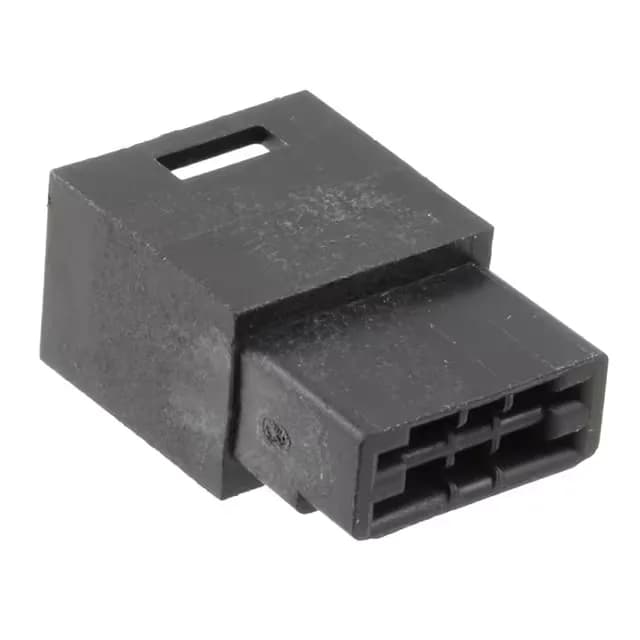

TE Connectivity AMP Connectors FFC pin housing, order code 3-88189-2, 6 positions, dual row, 0.100" (2.54mm) pitch, 1.5 A, 300 V, detent lock, polyamide glass-filled housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Connector type | Housing for Male Contacts |
| Flat flex type | FFC, Discrete Wire |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Wire gauge | 22-24 AWG |
| Operating temperature | -65°C~105°C |
| Housing color | Black |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Positions Stamped |
| Rows | 2 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.015mm |
| Insulation diameter | 0.061\" ~ 0.069\" (1.55mm ~ 1.75mm) |
| Positions | 6 |
The 3-88189-2 is a 6-circuit FFC pin housing from TE Connectivity AMP Connectors, accepting male contacts for FFC or discrete wire termination.
The housing accepts 22-24 AWG wire with an insulation diameter of 0.061" ~ 0.069" (1.55mm ~ 1.75mm); contacts are ordered separately per the listed note.
The housing accepts 22-24 AWG wire with an insulation diameter of 0.061" ~ 0.069" (1.55mm ~ 1.75mm).
