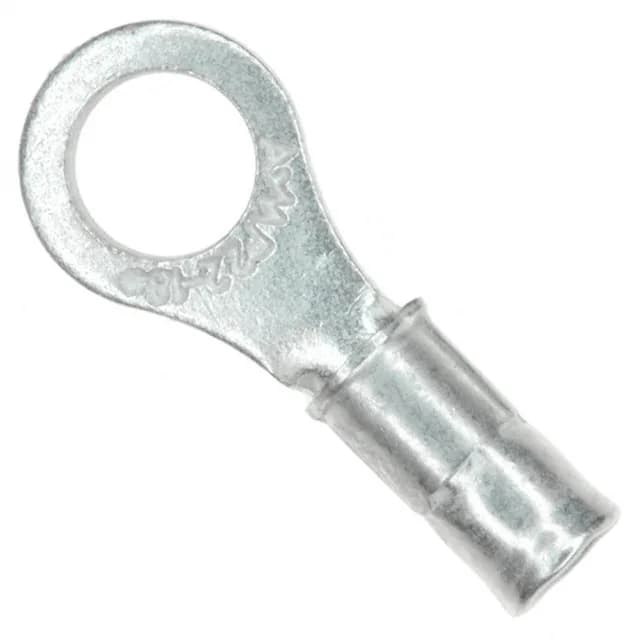

TE Connectivity AMP Connectors Diamond Grip ring terminal, order code 30997, 16-22 AWG, #10 stud, circular, tin-plated copper, non-insulated, crimp termination, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Diamond Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.775\" (19.69mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
The 30997 is a non-insulated Diamond Grip ring terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and fitting a #10 stud. Tin-plated copper contact with serrated termination; crimp termination for free-hanging (in-line) mounting.
Overall length 0.775" (19.69 mm), outer edge width 0.312" (7.92 mm), material thickness 0.031" (0.79 mm). Accepts insulation diameters from 0.080" to 0.125" (2.03 mm to 3.18 mm).
The 30997 is ROHS3 Compliant per TE Connectivity AMP Connectors.
