TE Connectivity AMP Connectors 31123

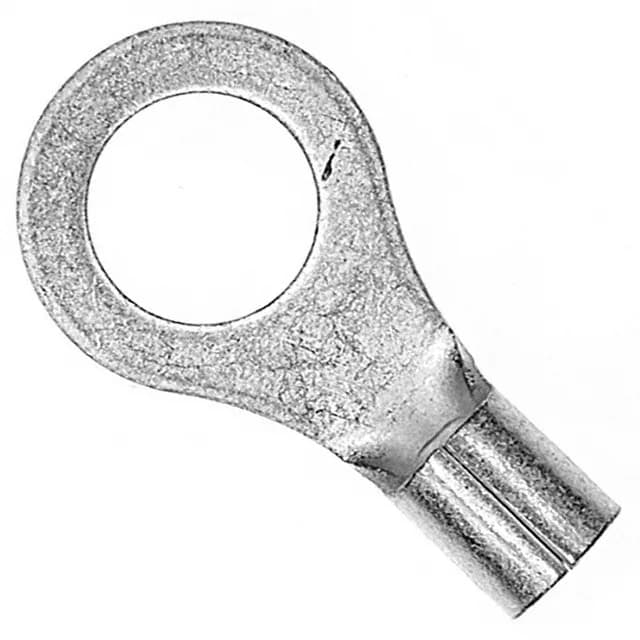

TE 31123 Ring Terminal, 10-12 AWG, #5/16 Stud, Tin

MPN 31123
Active

TE Connectivity AMP Connectors Budget ring terminal, order code 31123, 10-12 AWG, 5/16 stud size, tin-plated copper, non-insulated, crimp termination, free hanging.

$0.3600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBudget
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

31123 specifications
ParameterValue
SeriesBudget
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
PackageBulk
FeaturesSerrated Termination
Thickness0.039\" (0.99mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.004\" (25.50mm)

Product details

Ring terminal for 10-12 AWG, 5/16 stud

The 31123 is a non-insulated ring terminal from TE's Budget series, accepting 10-12 AWG wire and fitting a 5/16 stud. Tin-plated copper contact, 0.039" (0.99mm) thick, with a serrated termination that bites into the conductor during crimp.

How it compares to Solistrand ring terminals

The 31123's 0.039" (0.99mm) thickness is heavier than the 0.031" (0.79mm) of Solistrand siblings like 1377172-9 (1/4 stud) and 1377172-7 (8 stud), both of which also carry a brazed seam — the Budget series omits the brazed seam.

MPN
31123
