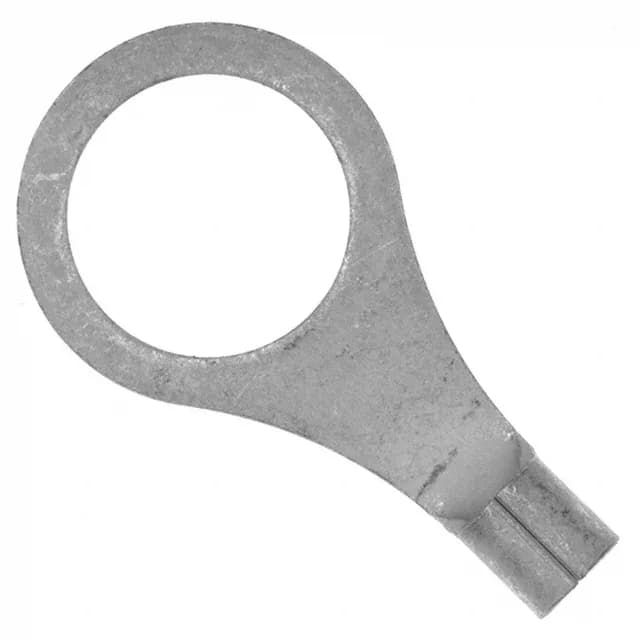

TE Connectivity AMP Connectors 31499 — Ring Terminals

TE 31499 Ring Terminal, 14-16 AWG, #3/8 Stud, Tin, Bulk

MPN31499
Active

TE Connectivity AMP Connectors Budget ring terminal, order code 31499, 14-16 AWG, #3/8 stud, 0.031" (0.79mm) thickness, tin-plated copper, non-insulated, crimp termination, free hanging, bulk package.

$0.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBudget
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

31499 specifications
ParameterValue
SeriesBudget
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
PackageBulk
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)3/8 Stud
Contact finishTin
Length - overall0.995\" (25.27mm)

Product details

Ring terminal for 14-16 AWG, #3/8 stud

The 31499 is a non-insulated circular ring terminal from the Budget series, accepting 14-16 AWG wire and fitting a #3/8 stud. The tin-plated copper contact is 0.031" (0.79mm) thick and terminates by crimp, with serrations on the barrel to grip the conductor.

Active production, bulk supply

Stud-size selection across the family

Within the same 0.031" thickness and 14-16 AWG range, the Solistrand series offers the 1377172-9 for a 1/4 stud (0.469" width) and the 1377172-7 for an 8 stud (0.343" width) — the 31499 serves the larger #3/8 stud size.

Frequently asked questions

Will the 31499 fit a panel designed for the 1377172-9 (1/4 stud)?

No — the 31499 is sized for a #3/8 stud (0.531" outer width), while the 1377172-9 fits a 1/4 stud (0.469" width). The stud size and outer width differ; wire gauge and thickness are the same.
