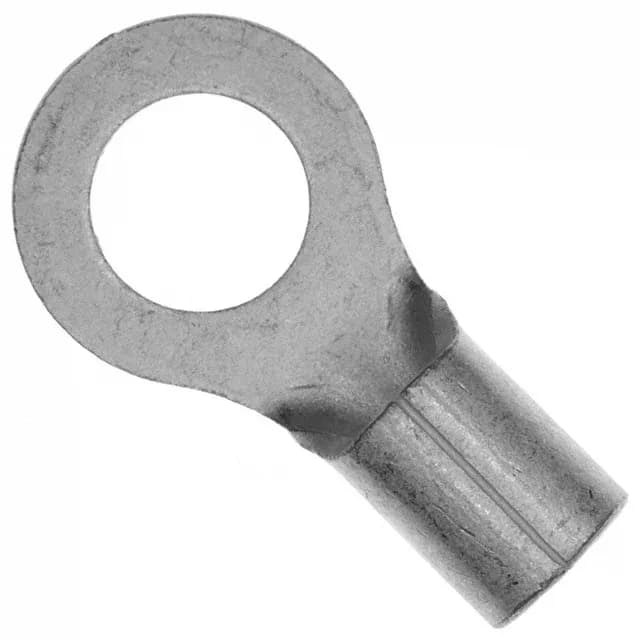

TE Connectivity AMP Connectors 31808 — Ring Terminals

TE Connectivity Solistrand 31808 Ring Terminal, 8 AWG

MPN31808
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 31808, 8 AWG, #5/16 stud, circular, non-insulated, tin-plated copper, crimp termination, free hanging, brazed seam, serrated termination.

$0.9200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

31808 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge8 AWG
Contact materialCopper
Width - outer edges0.562\" (14.27mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.048\" (1.22mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.074\" (27.28mm)

Product details

8 AWG ring for #5/16 stud

The 31808 is an 8 AWG circular ring terminal from TE's Solistrand series, sized for a #5/16 stud and terminated by crimp in a free-hanging (in-line) mount. The terminal is non-insulated, formed from tin-plated copper with a brazed seam and serrated termination for secure wire grip.

Stud-size selection across Solistrand

Within the same Solistrand series and 8 AWG wire gauge, the 31808 (5/16 stud) differs from the 33463 (3/8 stud) and the 322242 (3/8 stud, 10-12 AWG) — the stud size and wire range are the selection axis; the brazed seam, serrated termination, and tin-plated copper construction are shared across the series.

Frequently asked questions

What compliance documentation is available for the 31808?

The 31808 is ROHS3 Compliant per TE Connectivity's declaration.

Will the 31808 drop into a panel specified for the 33463 without rewiring?

No. The 31808 uses a #5/16 stud, while the 33463 uses a 3/8 stud — the stud size difference means the ring will not fit the same stud without a change in hardware.
