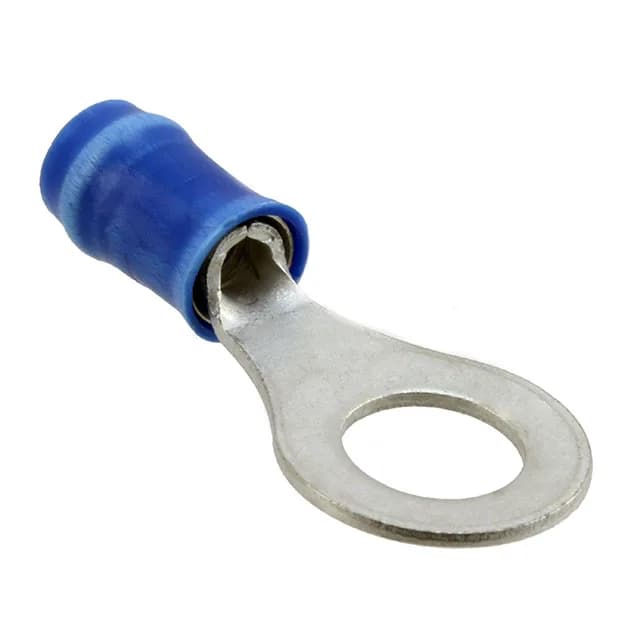

TE Connectivity AMP Connectors PIDG ring terminal, order code 31906, circular, 14-16 AWG, #1/4 stud size, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated with PVC, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.078\" (27.38mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
The 31906 is the blue-coded 14-16 AWG member of TE's PIDG ring terminal line, sized for a 1/4 stud. The tin-plated copper contact is 0.031" thick and the PVC insulation accepts wire insulation diameters from 0.115" to 0.170".
The serrated termination inside the barrel grips the stripped conductor during crimping, reducing pull-out risk. Overall length is 1.078" with an outer edge width of 0.469".
