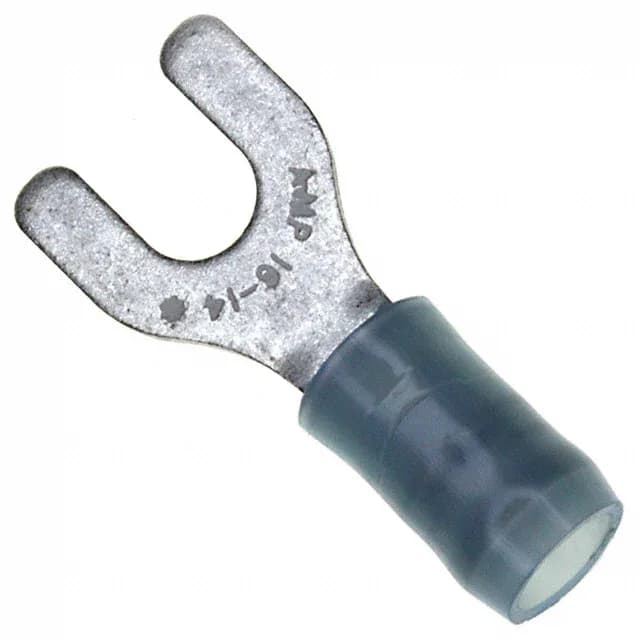

TE Connectivity AMP Connectors 32056
MPN32056
Active
CONN SPADE TERM 14-16AWG #8 BLU
$0.5800Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.908\" (23.06mm) |
| Insulation diameter | 0.105\" ~ 0.150\" (2.67mm ~ 3.81mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.312\" (7.92mm) |
