What it is

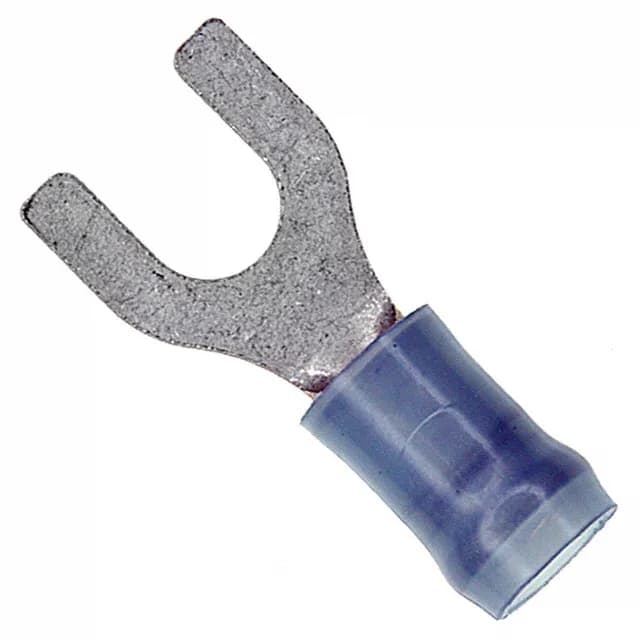

The 32060 is an insulated PIDG spade terminal from TE Connectivity AMP Connectors for 14-16 AWG wire on a #10 stud. Tin-plated copper contact, blue nylon insulation, serrated barrel for grip on stripped wire.
32060 TE PIDG Spade Terminal 14-16 AWG #10 Blue
MPN32060
Active
TE Connectivity AMP Connectors PIDG spade terminal, order code 32060, 14-16 AWG, #10 stud, tin-plated copper, insulated, blue nylon, free-hanging crimp, serrated termination.
$0.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.908\" (23.06mm) |
| Insulation diameter | 0.115\" ~ 0.170\" (2.92mm ~ 4.32mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.197\" (5.00mm) |
| Length - ring center to termination | 0.312\" (7.92mm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 32060?
The 32060 carries ROHS3 compliance status.
What is 32060's listed color on this Spade Terminals line?
Blue insulation, standard for the 14-16 AWG PIDG range.
