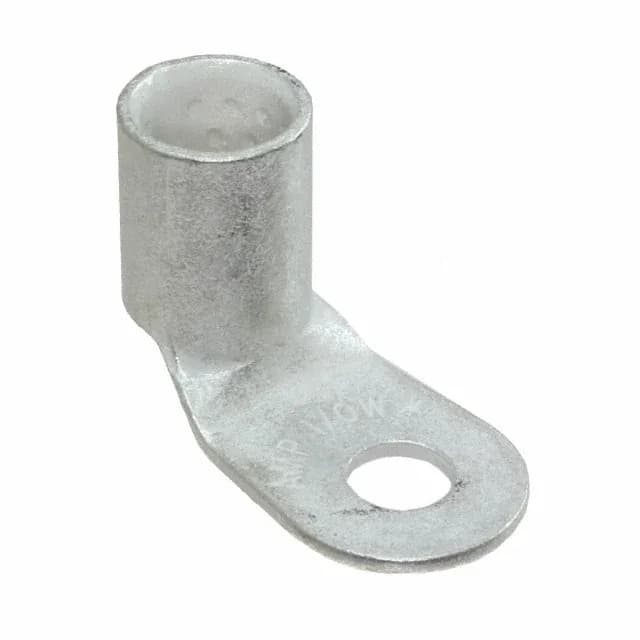

TE Connectivity AMP Connectors Solistrand ring terminal, order code 321867-1, 1/0 AWG, #5/16 stud size, circular terminal type, tin-plated copper contact, brazed seam, non-insulated, free-hanging right-angle mount, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Circular |
| Wire gauge | 1/0 AWG |
| Contact material | Copper |
| Width - outer edges | 0.807\" (20.50mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.070\" (1.78mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
The 321867-1: Tin-plated copper contact with a brazed seam; non-insulated body, free-hanging right-angle mount, crimp termination. Body thickness is 0.070" (1.78 mm).
Within the Solistrand 1/0 AWG line, the 321867-1 uses a #5/16 stud while the 321868 uses a 3/8 stud — both share the 0.070" (1.78 mm) thickness, tin-plated copper, brazed seam, and non-insulated construction. Match stud size to the panel bolt hole.
No — the stud sizes differ (#5/16 vs 3/8). The wire gauge (1/0 AWG), thickness (0.070"), and contact finish (tin) are identical, but the bolt hole diameter must match the stud size. Rewiring is not needed; the panel hole must be sized for #5/16.
