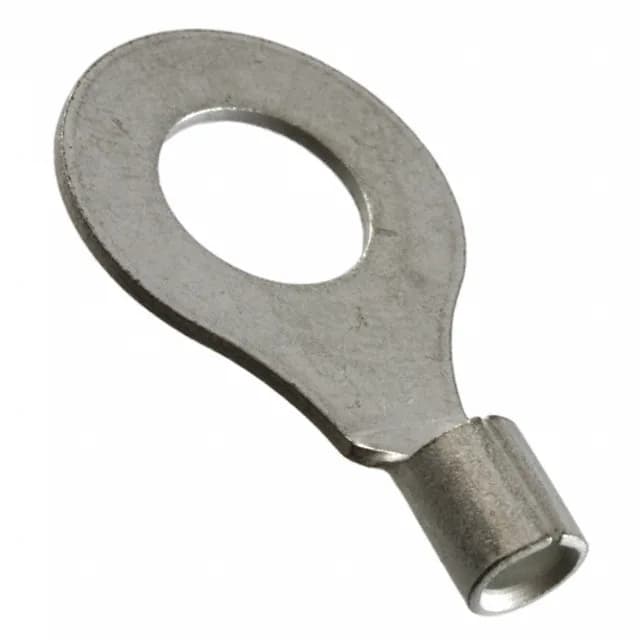

TE Connectivity AMP Connectors Solistrand ring terminal, order code 322242, 10-12 AWG, #3/8 stud, tin-plated copper, non-insulated, circular, 0.039" (0.99mm) thick, crimp termination, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Copper |
| Width - outer edges | 0.750\" (19.05mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 1.271\" (32.28mm) |
The 322242 is a non-insulated circular ring terminal in TE's Solistrand series, accepting 10-12 AWG wire and fitting a #3/8 stud. The tin-plated copper body is 0.039" (0.99mm) thick with a brazed seam and serrated termination for crimp retention; supplied in bulk.
The 322242 is ROHS3 compliant.
