TE Connectivity AMP Connectors 322307 — Ring Terminals

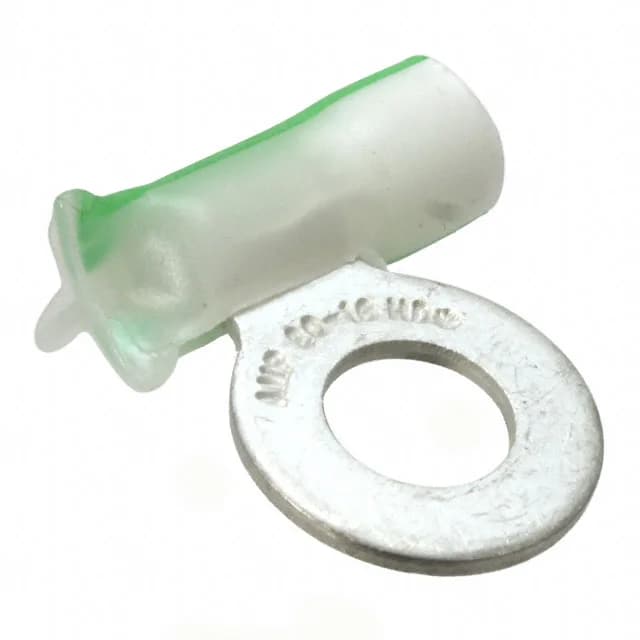

TE 322307 Plasti-Grip Ring Terminal, 16-20 AWG, #14 Stud

MPN322307
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 322307, 16-20 AWG, #14 stud, circular terminal, tin-plated copper, insulated PVC, crimp flag termination, free hanging right-angle.

$3.3800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPlasti-Grip
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

322307 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line), Right Angle
Terminal typeCircular
Wire gauge16-20 AWG
ColorNatural, Green Stripe
Contact materialCopper
Width - outer edges0.500\" (12.70mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBulk
FeaturesHeavy Duty, Serrated Termination
Thickness0.040\" (1.02mm)
InsulationInsulated
TerminationCrimp, Flag
Stud (Tab size)14 Stud
Contact finishTin
Length - overall0.749\" (19.02mm)
Insulation diameter0.115\" ~ 0.170\" (2.92mm ~ 4.32mm)

Product details

What it carries and where it fits

The 322307 is the 16-20 AWG, #14 stud member of TE's Plasti-Grip ring terminal line, rated for crimp flag termination in free-hanging right-angle installations. The tin-plated copper contact is 0.040" thick with a serrated termination for grip; the PVC insulation accepts wire insulation diameters from 0.115" to 0.170".

How it compares to Solistrand non-insulated terminals

The 322307 is an insulated ring terminal, unlike the non-insulated Solistrand 1377172-7 (14-16 AWG, #8 stud) and 1377172-9 (14-16 AWG, 1/4 stud), which lack PVC insulation and use a brazed seam construction.
