TE Connectivity AMP Connectors 322363 — Ring Terminals

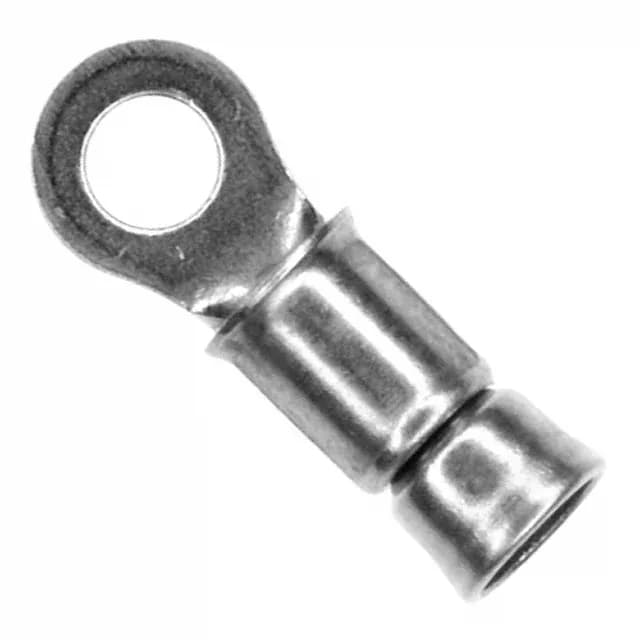

322363 TE Connectivity Ring Terminal, #4 Stud, 16-22 AWG

MPN322363
Active

TE Connectivity AMP Connectors Diamond Grip, Strato-Therm ring terminal, order code 322363, #4 stud, 16-22 AWG, non-insulated, nickel-plated copper, serrated crimp, free hanging in-line.

$1.8900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDiamond Grip, Strato-Therm
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

322363 specifications
ParameterValue
SeriesDiamond Grip, Strato-Therm
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
Contact materialCopper
Width - outer edges0.218\" (5.54mm)
PackageBulk
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)4 Stud
Contact finishNickel
Length - overall0.624\" (15.85mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)

Product details

Ring terminal for #4 stud, 16-22 AWG

The 322363 is the #4-stud member of TE's Diamond Grip, Strato-Therm ring terminal line, accepting 16-22 AWG wire with a serrated crimp on non-insulated nickel-plated copper. Free hanging inline termination; overall length 0.624" (15.85 mm), outer edge width 0.218" (5.54 mm), material thickness 0.031" (0.79 mm).

Stud size ladder in the Diamond Grip family

The 322363 (#4 stud) is the smallest-stud member of the Diamond Grip, Strato-Therm series for 16-22 AWG. Siblings 322365 (8 stud) and 322366 (10 stud) share the same 0.031" (0.79 mm) thickness, nickel finish, and serrated crimp — the outer edge width increases to 0.281" (7.14 mm) and overall length to 0.749" (19.02 mm) for the larger stud sizes.

Frequently asked questions

Will 322363 drop into a panel that was specified around 322365 without rewiring?

No — 322363 uses a #4 stud, while 322365 uses an 8 stud. The outer edge width and overall length differ, so the terminal does not fit the same stud size without changing the fastener.
