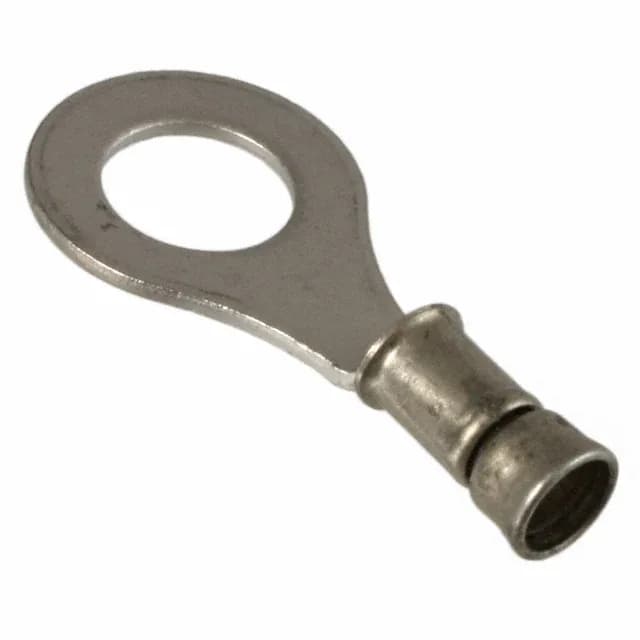

TE Connectivity AMP Connectors Diamond Grip, Strato-Therm ring terminal, order code 322367, 16-22 AWG, #1/4 stud, circular terminal, non-insulated, nickel-plated copper, serrated crimp, free hanging in-line.
| Parameter | Value |
|---|---|
| Series | Diamond Grip, Strato-Therm |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Nickel |
| Length - overall | 1.031\" (26.19mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 322367 is a non-insulated circular ring terminal from TE's Diamond Grip, Strato-Therm series, accepting 16-22 AWG wire and terminating to a 1/4 stud. The nickel-plated copper contact is crimped onto the wire, and the serrated inner barrel grips the conductor for mechanical retention.
The 322367 accepts an insulation diameter of 0.105" to 0.140" (2.67 mm to 3.56 mm).
The overall length is 1.031" (26.19 mm).
