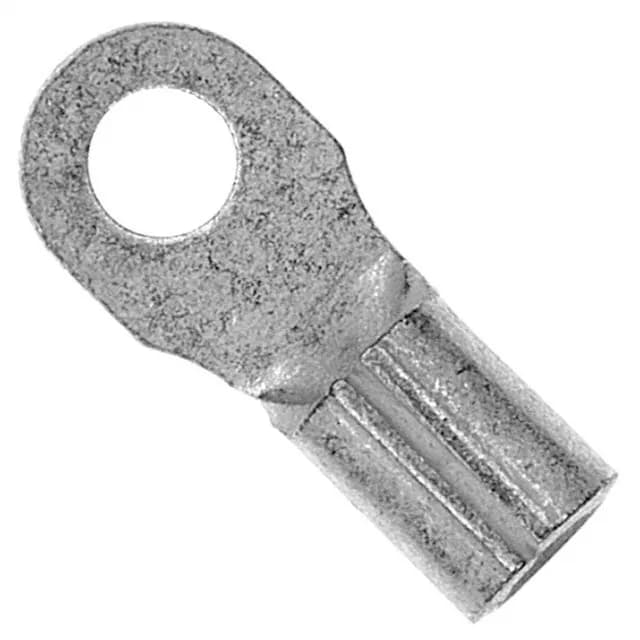

TE Connectivity AMP Connectors Solistrand ring terminal, order code 322927, D-shaped, non-insulated, 16-22 AWG, #2 stud, 0.031" (0.79mm) thickness, tin-plated copper, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | D-Shaped |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.182\" (4.62mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 2 Stud |
| Contact finish | Tin |
| Length - overall | 0.446\" (11.33mm) |
The 322927 is a D-shaped, non-insulated ring terminal in TE's Solistrand series, accepting 16-22 AWG wire and fitting a #2 stud. The terminal is tin-plated copper with a brazed seam and serrated termination, rated for crimp termination and free-hanging (in-line) mounting.
