TE Connectivity AMP Connectors 324911-1 — Ring Terminals

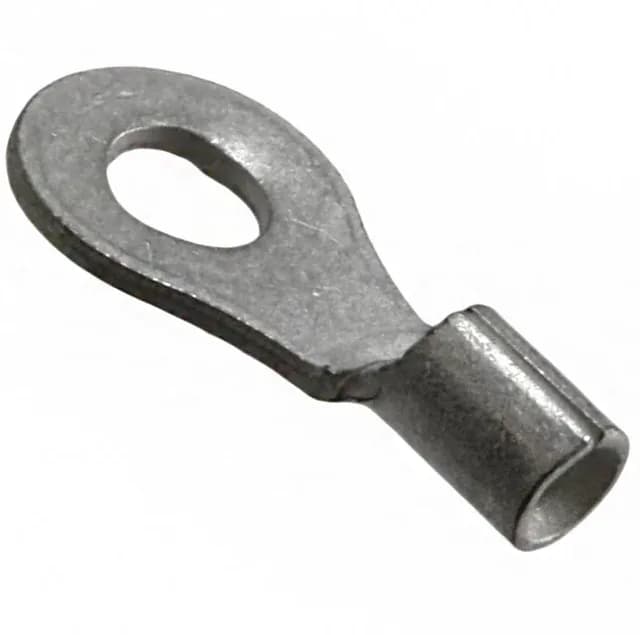

TE Connectivity 324911-1 Solistrand Ring Terminal, 10-12 AWG

MPN324911-1
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 324911-1, circular, 10-12 AWG, #6 stud, 0.039" (0.99mm) thick, non-insulated, brazed seam, serrated termination, crimp, free hanging.

$0.3800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

324911-1 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.039\" (0.99mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)6 Stud
Length - overall0.729\" (18.52mm)

Product details

Solistrand ring terminal for 10-12 AWG

The 324911-1 is a non-insulated circular ring terminal in TE Connectivity's Solistrand series, accepting 10-12 AWG wire and fitting a #6 stud. The terminal is 0.039" (0.99mm) thick with a brazed seam and serrated termination for crimp attachment, free hanging (in-line) mounting.

Solistrand series stud-size and wire-gauge range

Within the Solistrand ring terminal family, the 324911-1 (#6 stud, 10-12 AWG) sits alongside the 1377172-7 (#8 stud, 14-16 AWG) and the 1377172-9 (1/4 stud, 14-16 AWG) — all share the brazed seam, serrated termination, and copper construction, so the selection axis is stud size and wire gauge. The 133521-1 is a gold-plated Solistrand terminal for 18-22 AWG on an #8 stud, targeting signal-level circuits rather than the 324911-1's power-duty 10-12 AWG range.
