Insulated spade for 10-12 AWG, #8 stud
The 32510: The tin-plated copper contact is crimped to the wire, and the nylon insulation sleeve covers the termination barrel and a portion of the wire insulation, with a serrated inner barrel for grip.

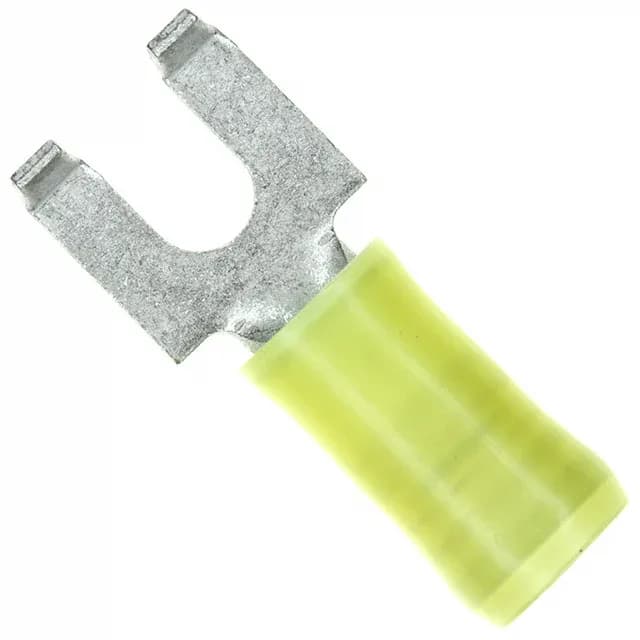

TE PIDG 32510 Spade Terminal, 10-12 AWG, #8 Stud, Yellow
MPN32510
Active
TE Connectivity AMP Connectors PIDG spade terminal, order code 32510, 10-12 AWG, #8 stud, flanged, tin-plated copper contact, insulated, free-hanging crimp termination, yellow.
$0.7500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.416\" (10.57mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.017\" (25.83mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
| Length - termination | 0.591\" (15.01mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
