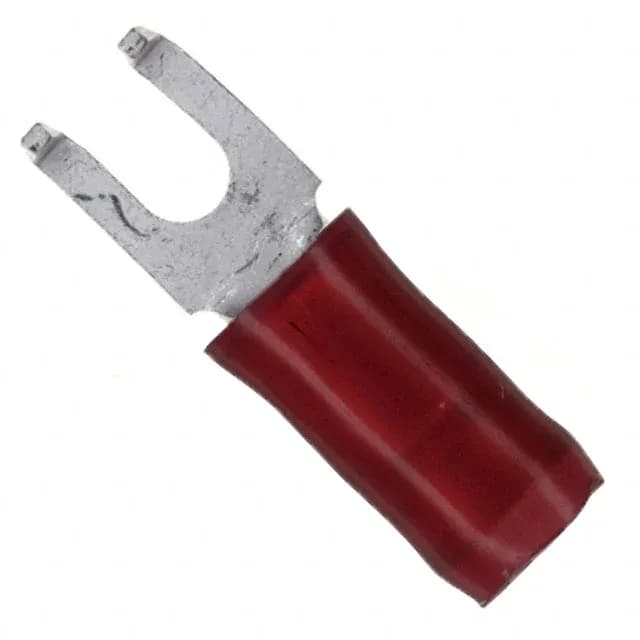

TE Connectivity AMP Connectors PIDG spade terminal, order code 32561, 16-22 AWG, #6 stud, tin-plated copper contact, insulated, flanged, serrated crimp termination, free hanging, bulk package.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.296\" (7.52mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.737\" (18.72mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 32561 is the #6-stud, 16-22 AWG member of TE's PIDG spade terminal line, colour-coded red for wire size identification. Tin-plated copper contact, serrated crimp barrel, and a nylon insulation sleeve rated for 0.080" to 0.125" insulation diameter.
