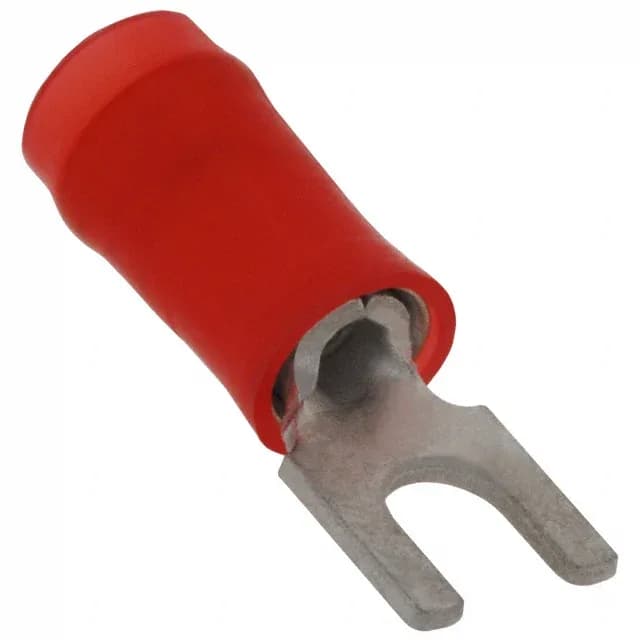

TE Connectivity AMP Connectors 327717
MPN327717
Active
CONN SPADE TERM 16-22AWG #4 RED
$0.6100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.218\" (5.54mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Features | Serrated Termination |
| Package | Bulk |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Stud (Tab size) | 4 Stud |
| Contact finish | Tin |
| Length - overall | 0.674\" (17.12mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.119\" (3.02mm) |
| Length - ring center to termination | 0.156\" (3.96mm) |
