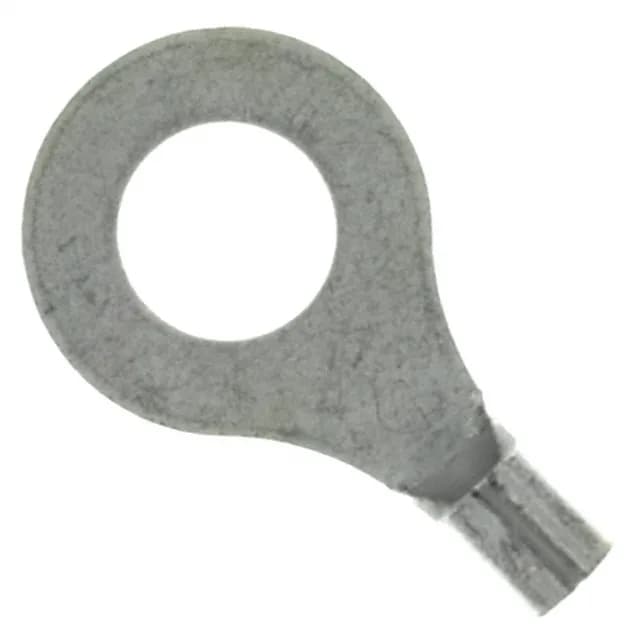

TE Connectivity AMP Connectors 327732 — Ring Terminals

TE Solistrand 327732 Ring Terminal, 14-16 AWG, 3/8 Stud

MPN327732
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 327732, 14-16 AWG, 3/8 stud, circular, 0.048" (1.22mm) thick, non-insulated, tin-plated copper, crimp termination, free hanging, bulk.

$1.0600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 327732 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

327732 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
Contact materialCopper
Width - outer edges0.750\" (19.05mm)
PackageBulk
FeaturesBrazed Seam, Heavy Duty, Serrated Termination
Thickness0.048\" (1.22mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)3/8 Stud
Contact finishTin
Length - overall1.271\" (32.28mm)

Product details

Solistrand 327732 ring terminal

The 327732 is the 14-16 AWG member of TE's Solistrand ring terminal line, terminated to a 3/8 stud. The terminal is 0.048" thick, tin-plated copper, non-insulated, and features a brazed seam and serrated termination for crimp retention.

Solistrand series selection

Within the Solistrand series the 327732's 14-16 AWG wire range and 0.048" thickness sit between the 10-12 AWG 322242 (0.039" thick) and the 4 AWG 322704 (0.070" thick) — all three share the 3/8 stud size, tin plating, and non-insulated design. The 35776 shares the 14-16 AWG range and 0.048" thickness but uses a 5/16 stud — match the stud size to the bus bar or terminal block hole.
