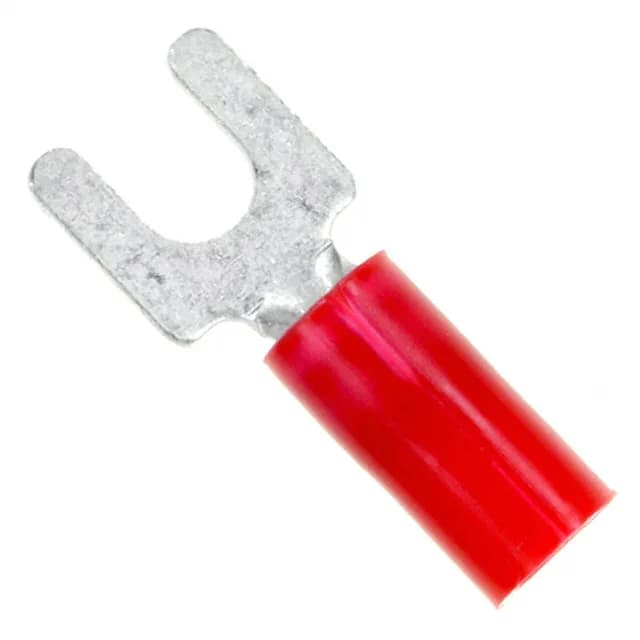

TE Connectivity AMP Connectors 327735
MPN327735
Active
CONN SPADE TERM 16-22AWG #6 RED
$0.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.297\" (7.54mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.765\" (19.43mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
