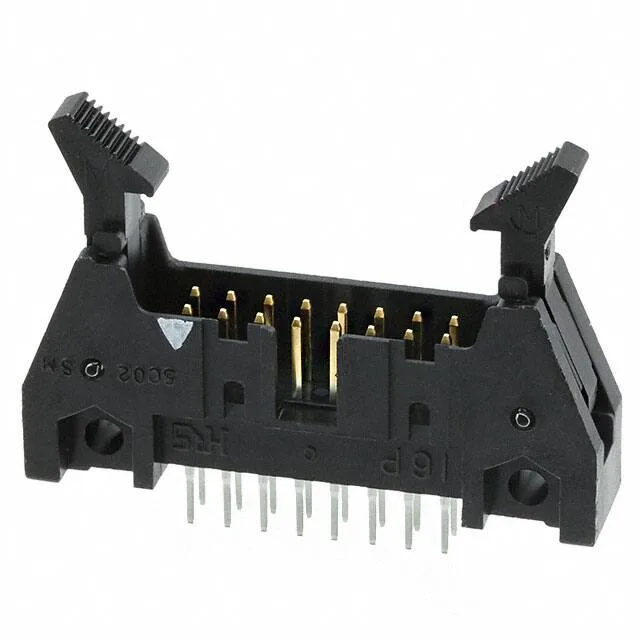

Hirose Electric Co Ltd HIF3CA-16PA-2.54DSA(71)
MPNHIF3CA-16PA-2.54DSA(71)
Obsolete
$2.9190Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HIF3C |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -55°C~85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.701\" (17.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.657\" (16.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
