TE Connectivity AMP Connectors 32951 — Ring Terminals

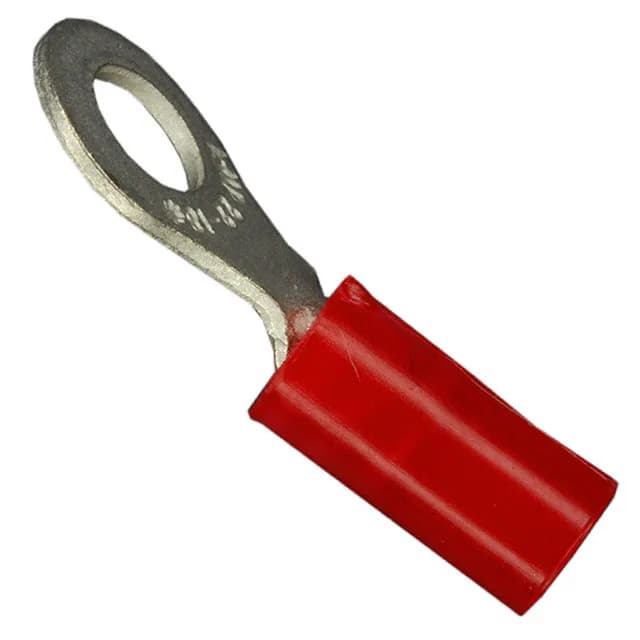

TE Connectivity 32951 Ring Terminal, 16-22 AWG, #8 Stud, Red

MPN32951
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 32951, 16-22 AWG, #8 stud, circular, tin-plated copper contact, insulated PVC, crimp termination, free hanging, bulk.

$0.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 32951 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPlasti-Grip
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

32951 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBulk
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.856\" (21.74mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

Plasti-Grip ring terminal, 16-22 AWG, #8 stud

The 32951 is a red-insulated Plasti-Grip ring terminal for 16-22 AWG wire, terminating to an #8 stud with a crimp connection. Tin-plated copper contact with serrated termination, 0.031" thick, free-hanging in-line mount, bulk packaged.

Same-series stud-size and wire-gauge variants

Within the Plasti-Grip series the 32951's #8 stud and 16-22 AWG range sit alongside the 32959 (same #8 stud, 14-16 AWG, blue) and the 34146 (#10 stud, 16-22 AWG, red) — insulation diameter and overall length shift with wire gauge, but the 0.031" contact thickness and tin plating are shared across the series.

Frequently asked questions

What compliance documentation is available for the 32951?

The 32951 is ROHS3 Compliant per the manufacturer's listing.

Will the 32951 drop into a panel specified around the 32959 without rewiring?

Both use an #8 stud and share the same 0.031" contact thickness, but the 32959 is rated for 14-16 AWG wire — the 32951 handles 16-22 AWG. The insulation diameter ranges differ, so the wire gauge match must be confirmed against the application.
