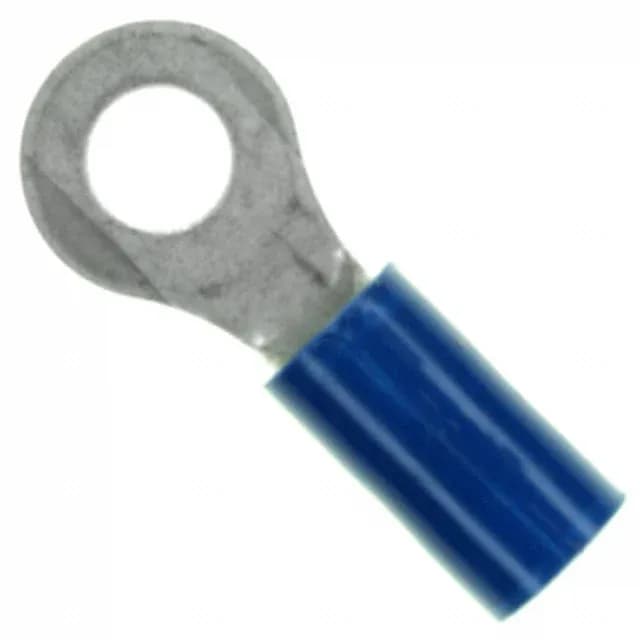

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 32959, #8 stud, 14-16 AWG, tin-plated copper, PVC insulated, serrated crimp, free-hanging, blue, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.871\" (22.12mm) |
| Insulation diameter | 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm) |
The 32959 is a #8 stud-size circular ring terminal from TE Connectivity's Plasti-Grip series, accepting 14-16 AWG wire with a serrated crimp termination. The tin-plated copper contact is housed in a blue PVC insulation sleeve rated for free-hanging inline use; the insulation diameter range is 0.105" to 0.145".
The 32959 is ROHS3 Compliant per the manufacturer's listing.
The insulation color is Blue and the series is Plasti-Grip.
The terminal accepts 14-16 AWG wire and fits a #8 stud.
