What this Termi-Foil terminal is for

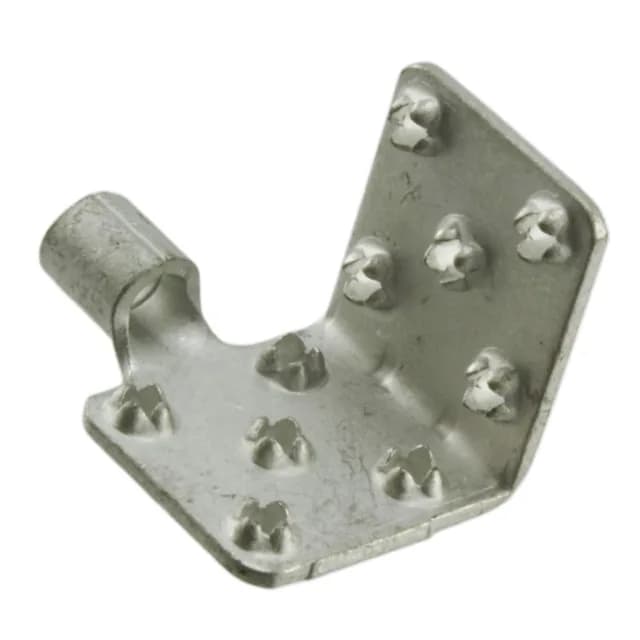

The 329860-1 is a double-face foil terminal from TE's Termi-Foil series, designed to terminate 14-16 AWG wire to a foil conductor. The tin-plated copper contact crimps onto both sides of the foil — the 0.408" x 0.454" crimp area gives you enough surface to carry current without a hot joint, as long as the crimp tool is set right.
Wire gauge and crimp area fit
Rated for 14-16 AWG wire, the terminal accepts solid or stranded copper. The foil crimp area measures 0.408" x 0.454" (10.36mm x 12.80mm) — match that against your foil width before ordering; a foil narrower than the crimp area leaves exposed contact edges. Overall length is 0.672" (17.07mm), which sets the clearance you need in the enclosure or along the busbar run.
Supplied in Bulk packaging. ROHS3 compliant.
