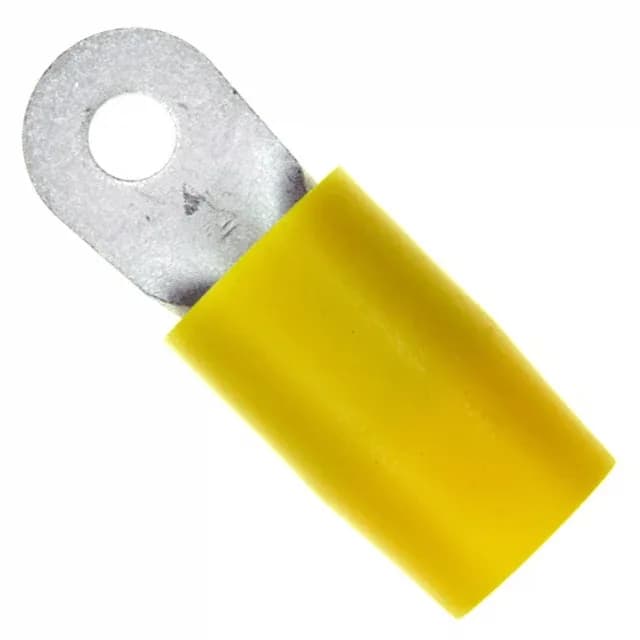

TE Connectivity AMP Connectors Terminyl ring terminal, order code 331456, circular, 4 AWG, #8 stud, yellow insulated, tin-plated copper, 0.048" (1.22mm) thick, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Terminyl |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.437\" (11.10mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.376\" (34.95mm) |
| Insulation diameter | 0.382\" (9.70mm) |
The 331456 is the 4 AWG, #8-stud member of TE's Terminyl insulated ring terminal line. The tin-plated copper barrel accepts 4 AWG wire via crimp termination; the yellow nylon insulation covers a 0.382" (9.70mm) insulation diameter.
No. The 331456 uses a #8 stud; the 324052 uses a 3/8 stud. Both accept 4 AWG wire and share the same 0.048" thickness and serrated termination, but the stud size differs.
