TE Connectivity AMP Connectors 33458 — Ring Terminals

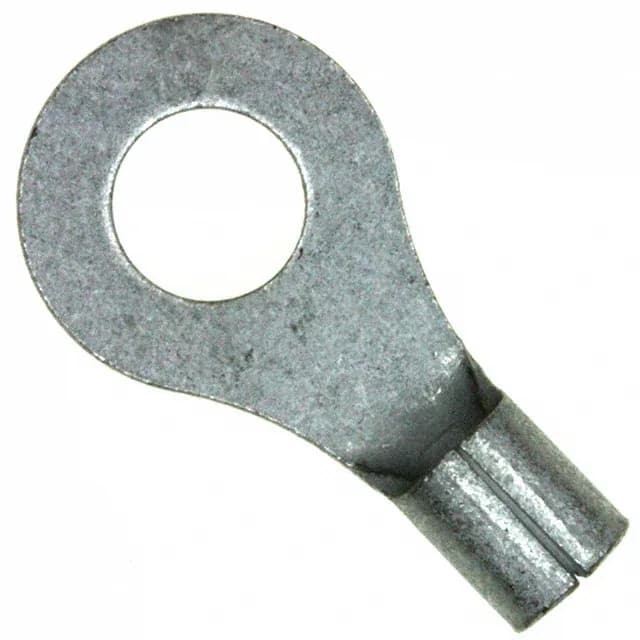

TE Solistrand 33458 Ring Terminal, 10-12 AWG, #1/4 Stud

MPN33458
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 33458, 10-12 AWG, #1/4 stud size, circular terminal type, tin-plated copper, non-insulated, crimp termination, free hanging, bulk.

$0.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 33458 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

33458 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.039\" (0.99mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)1/4 Stud
Contact finishTin
Length - overall1.004\" (25.50mm)

Product details

Solistrand ring terminal for 10-12 AWG

The 33458 is a non-insulated circular ring terminal in TE's Solistrand series, accepting 10-12 AWG wire onto a #1/4 stud. The terminal is tin-plated copper with a brazed seam and serrated termination, rated for free-hanging crimp installation. Overall length is 1.004" (25.50 mm); outer width is 0.531" (13.49 mm).

Material and plating selection

The 0.039" (0.99 mm) thick copper base with tin plating suits environments where corrosion resistance and solderability are not required — the brazed seam prevents the barrel from splitting under crimp force.

Frequently asked questions

What wire gauge and stud size does the 33458 accept?

The terminal accepts 10-12 AWG wire and fits a #1/4 stud. The circular terminal type mates with a standard bolt or screw.
