TE Connectivity AMP Connectors 33465 — Ring Terminals

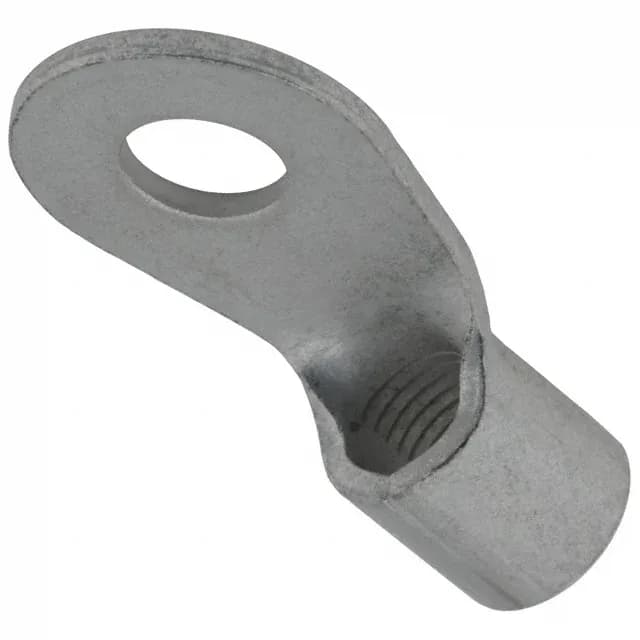

33465 Solistrand Ring Terminal, 6 AWG, 1/4 Stud

MPN33465
Active

TE Connectivity Solistrand ring terminal, order code 33465, 6 AWG, 1/4 stud size, circular terminal type, tin-plated copper, brazed seam and serrated termination, crimp termination, free hanging in-line mounting, non-insulated.

$0.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

33465 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge6 AWG
Contact materialCopper
Width - outer edges0.625\" (15.88mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.057\" (1.45mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)1/4 Stud
Contact finishTin
Length - overall1.246\" (31.65mm)

Product details

6 AWG ring terminal for 1/4 stud

The 33465 is the 6 AWG member of the TE Connectivity Solistrand ring terminal line, accepting a 1/4 stud and terminating via crimp for free-hanging in-line mounting. The tin-plated copper body carries a brazed seam and serrated termination, rated for 6 AWG wire in a non-insulated circular terminal format.

Stud size and wire gauge across the series

Within the Solistrand family, the 33465's 1/4 stud and 6 AWG wire gauge sit between the 8 AWG 33463 (3/8 stud, 0.048" thickness) and the 10-12 AWG 33458 (1/4 stud, 0.039" thickness); the 33467 shares the same 6 AWG and 1.246" length but steps to a 3/8 stud.

Frequently asked questions

Will 33465 drop into a panel that was specified around 33467 without rewiring?

No — the 33465 uses a 1/4 stud while the 33467 uses a 3/8 stud; the wire gauge (6 AWG) and overall length (1.246") are shared, but the stud size differs, so the panel hole and mating hardware must match the stud diameter.
