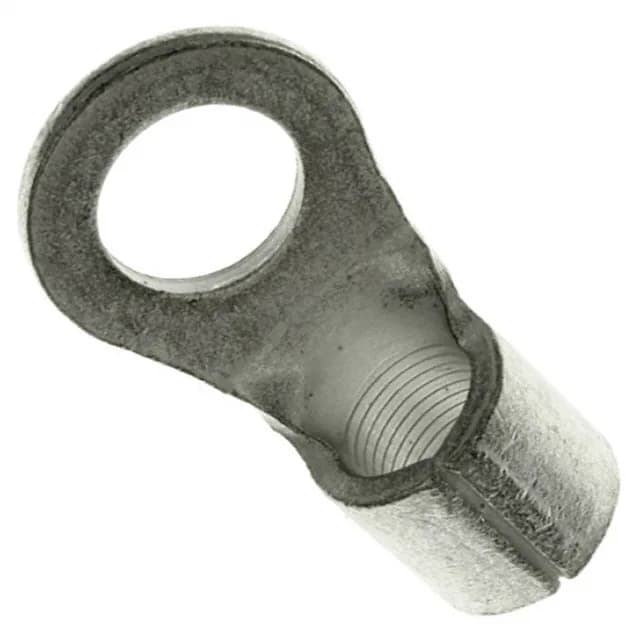

TE Connectivity AMP Connectors Solistrand ring terminal, order code 33471, 4 AWG, #3/8 stud size, non-insulated, tin-plated copper, brazed seam, serrated termination, crimp termination, free hanging, bulk package.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4 AWG |
| Contact material | Copper |
| Width - outer edges | 0.656\" (16.66mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.070\" (1.78mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 1.314\" (33.38mm) |
The 33471 is the #3/8 stud-size member of TE's Solistrand ring terminal line, accepting 4 AWG cable with a tin-plated copper crimp barrel. The brazed seam and serrated inner barrel grip the conductor under the crimp tool — the serrations bite through oxide for a gas-tight joint that holds in vibration. Overall length is 1.314" (33.38 mm) with an outer edge width of 0.656" (16.66 mm); the barrel wall thickness is 0.070" (1.78 mm).
TE Connectivity AMP Connectors manufactures the 33471 under the Solistrand series. It is quoted to order against the BOM quantity; availability is confirmed at RFQ.
The 33471 is a non-insulated tin-plated copper ring terminal. Compliance documentation (RoHS, REACH, UL) is available per TE's standard documentation package for the Solistrand series.
