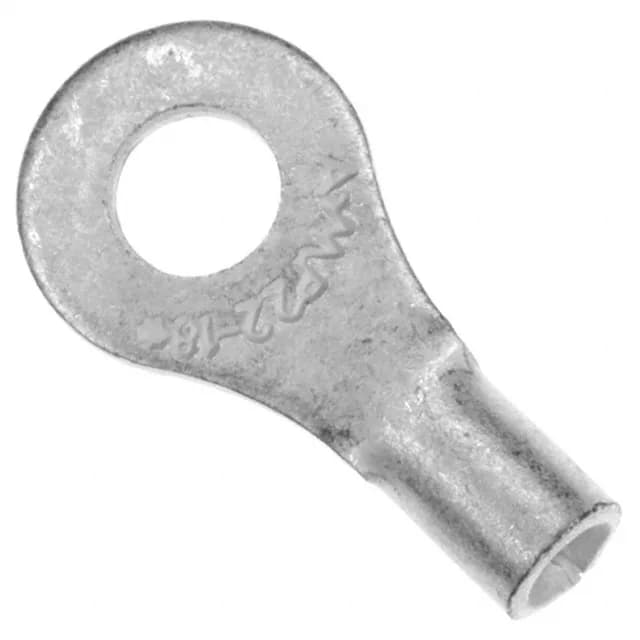

TE Connectivity AMP Connectors Solistrand ring terminal, order code 34110, circular, 16-22 AWG, #6 stud, tin-plated copper, non-insulated, 0.031" (0.79mm) thickness, crimp termination, free hanging (in-line), bulk.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.621\" (15.77mm) |
The 34110 is a non-insulated circular ring terminal from TE's Solistrand series, accepting 16-22 AWG wire and fitting a #6 stud. Tin-plated copper construction with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimp for a gas-tight joint.
