TE Connectivity AMP Connectors 34144 — Ring Terminals

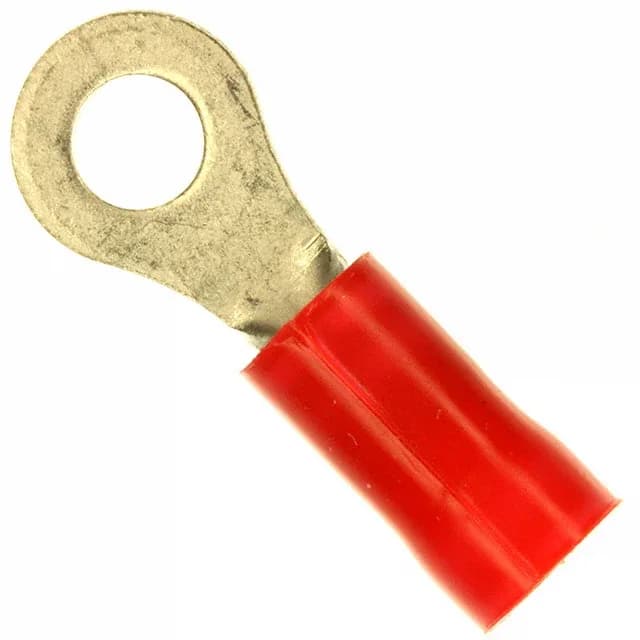

34144 TE AMP Plasti-Grip Ring Terminal, #6 Stud, 16-22 AWG

MPN34144
Active

TE Connectivity AMP Plasti-Grip ring terminal, order code 34144, #6 stud size, 16-22 AWG, red insulated, tin-plated copper contact, 0.031" (0.79mm) thickness, serrated crimp termination, free hanging in-line mount, bulk package.

$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

34144 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.281\" (7.14mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBulk
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.809\" (20.55mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)

Product details

Plasti-Grip ring terminal, #6 stud, 16-22 AWG

The 34144: The tin-plated copper contact is 0.031" (0.79mm) thick with a serrated inner barrel for crimp retention, and the PVC insulation accepts wire insulation diameters from 0.105" to 0.140" (2.67mm to 3.56mm).

Stud size selection across the Plasti-Grip series

The 34144 (#6 stud) sits between the 34143 (#4 stud) and the 34148 (#8 stud) in the same Plasti-Grip series — all three share the 16-22 AWG wire range, 0.031" thickness, red PVC insulation, and serrated crimp termination, so the stud size is the sole selection axis.

Frequently asked questions

What compliance documentation does TE Connectivity AMP Connectors provide for 34144?

The 34144 is ROHS3 Compliant.

Will 34144 drop into a panel that was specified around 34143 without rewiring?

No — the 34144 uses a #6 stud, while the 34143 uses a #4 stud. The wire gauge (16-22 AWG), insulation diameter range, and overall length are identical, but the stud size difference means a direct mechanical swap requires a different panel hole or stud.
