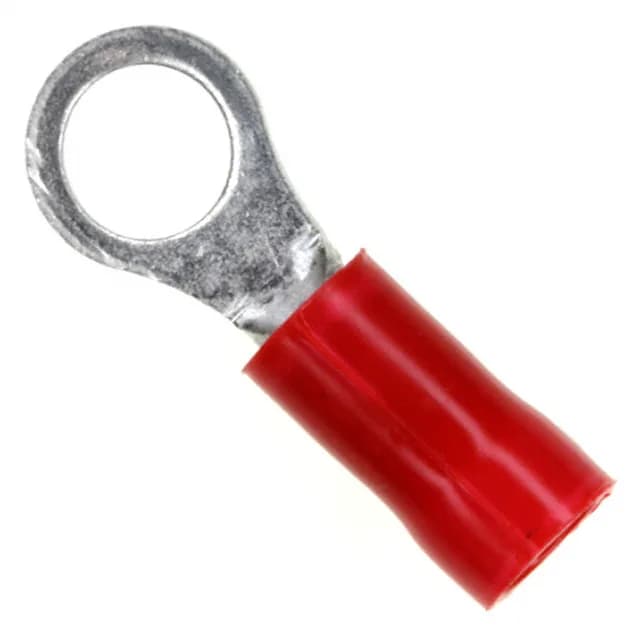

TE Connectivity AMP Plasti-Grip ring terminal, order code 34146, 16-22 AWG, #10 stud size, circular terminal type, tin-plated copper contact, insulated PVC sleeve, crimp termination, free hanging in-line mount, bulk package.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.809\" (20.55mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 34146 is a red insulated ring terminal from the TE Plasti-Grip series, accepting 16-22 AWG wire for a #10 stud size. The tin-plated copper contact is 0.031" thick with a serrated termination barrel that grips the conductor during crimp.
Overall length is 0.809" with an outer edge width of 0.281". The insulation barrel accepts wire insulation diameters from 0.105" to 0.140".
