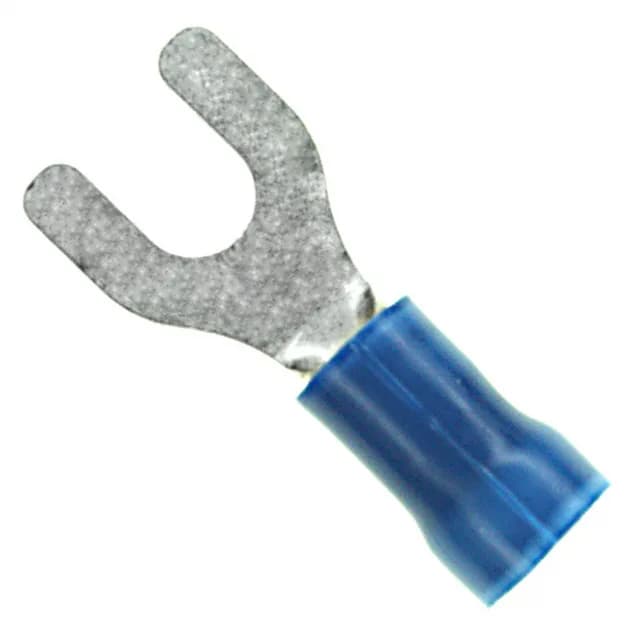

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 34166, 14-16 AWG, #8 stud, blue, insulated, copper, crimp termination, free hanging, serrated termination, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.385\" (9.78mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Length - overall | 0.920\" (23.37mm) |
| Insulation diameter | 0.118\" ~ 0.193\" (3.00mm ~ 4.90mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.312\" (7.92mm) |
The 34166 is a Plasti-Grip spade terminal from TE Connectivity AMP Connectors, accepting 14-16 AWG wire and terminating to a #8 stud. The copper contact is crimp-terminated and the blue PVC insulation covers the barrel with a serrated termination for grip.
The 34166 accepts 14-16 AWG wire.
The insulation is blue.
