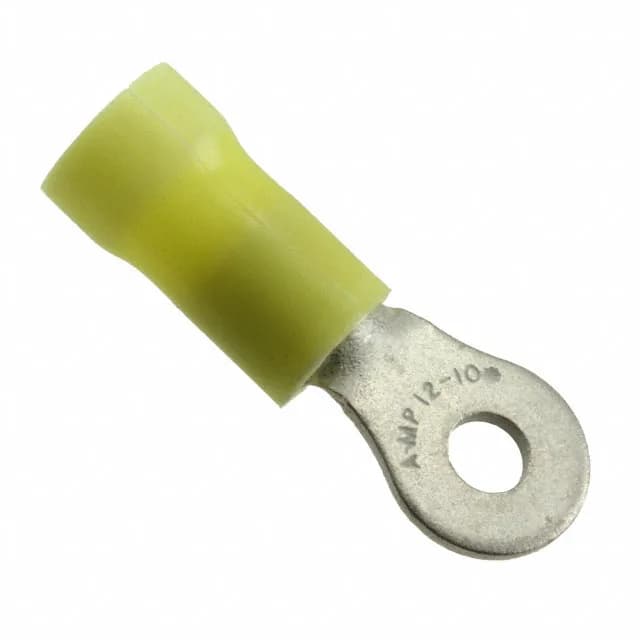

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 342182-1, 10-12 AWG, circular, insulated, tin-plated copper, 0.039" (0.99mm) thickness, free hanging in-line, crimp termination, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.374\" (9.50mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - overall | 1.103\" (28.02mm) |
| Insulation diameter | 0.150\" ~ 0.252\" (3.81mm ~ 6.40mm) |
The 342182-1 is the 10-12 AWG member of TE's Plasti-Grip ring terminal line, insulated with a yellow PVC sleeve and crimp termination for free-hanging in-line installation. The tin-plated copper contact is 0.039" (0.99mm) thick, and the terminal accepts wire insulation diameters from 0.150" to 0.252" (3.81mm to 6.40mm).
