Drawer Connector for Blind-Mate Panel Applications

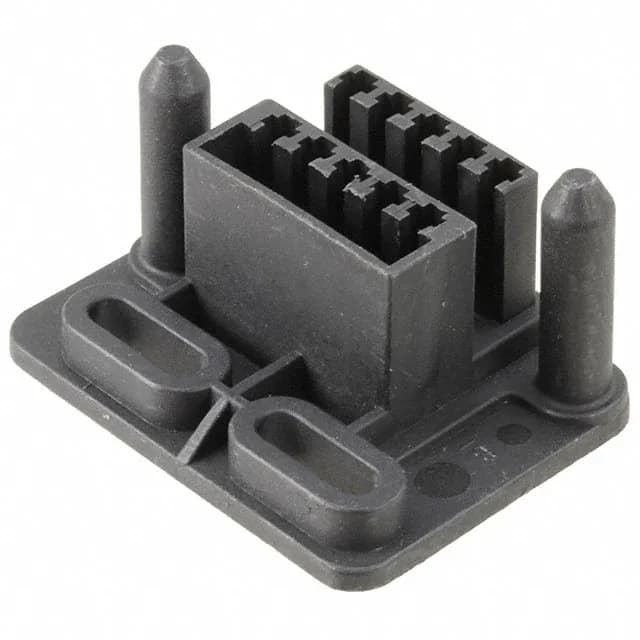

The black housing includes a guide pin to steer mating halves into position, which takes the shear load off the contacts during engagement.
Panel Mount and Mating Half
Panel mount with flange — bolts to the enclosure cutout. The mating receptacle is the 343348-1, also 10 positions, 2 rows, panel mount, with mating guide features. Both halves use the same contact system; you'll need to select the correct crimp terminals for your wire gauge.
Contacts — What to Order
The 343347-1 ships without contacts. The note on the listing is direct: contacts not included. Factor the terminal order into your BOM line.
Comparison: 343347-1 vs 343348-1
The 343347-1 is the plug (male pin housing); the 343348-1 is the receptacle (female socket housing). Both are 10-position, 2-row, panel-mount, black, active, and contacts not included. The 343347-1 carries a guide pin; the 343348-1 carries a mating guide. They are a matched pair — order both halves.
