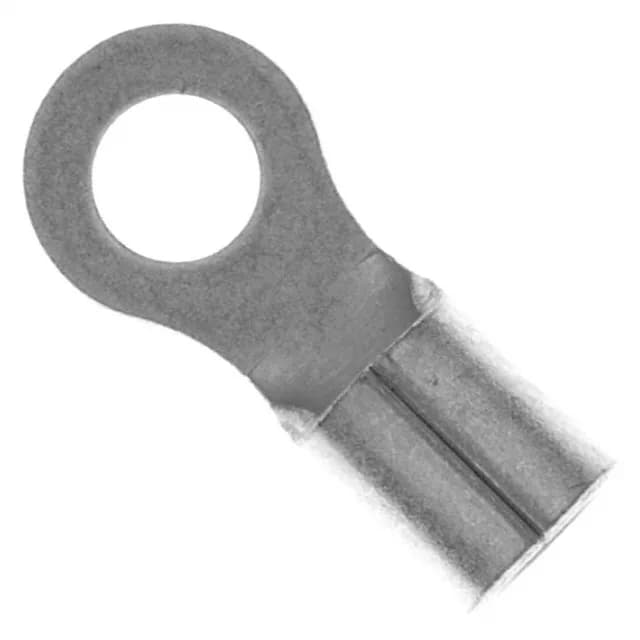

TE Connectivity AMP Connectors Budget ring terminal, order code 34404, circular, #8 stud, 10-12 AWG, non-insulated, 0.039" (0.99mm) thickness, tin-plated copper, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Budget |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.708\" (17.98mm) |
The 34404: The tin-plated copper body is 0.039" (0.99mm) thick with a serrated inner barrel that grips the conductor strands during crimp — a splice that holds without cold flow.
Sourcing is per RFQ against the BOM quantity — availability confirmed at time of quote.
Submit an RFQ with the BOM quantity.
The 34404 is RoHS Compliant per the manufacturer listing.
